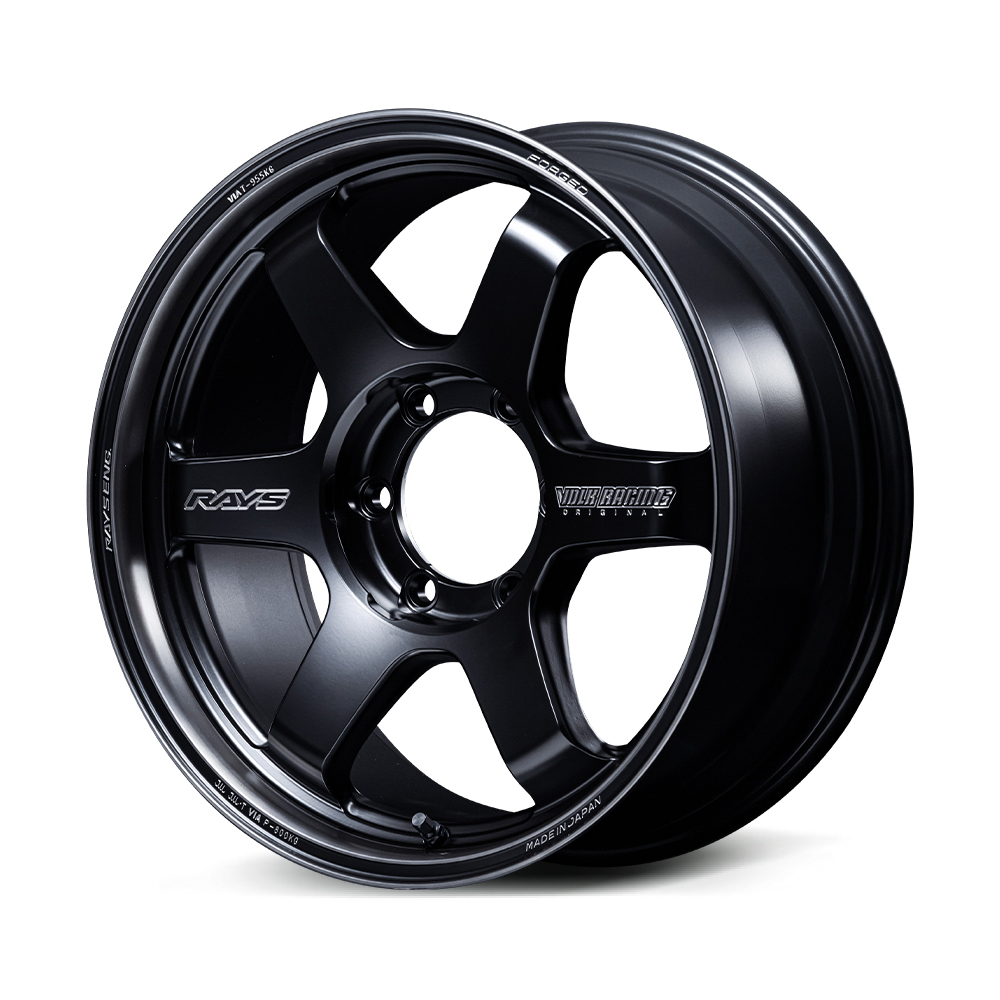

TE37 ULTRA LARGE P.C.D. BLACK SHADOW LTD.

TE37Ultra LARGE P.C.D. Black Shadow Debuts.

From city streets to the wilderness, the “TE37Ultra LARGE P.C.D.” has supported the feet of big monster machines that conquer every scene. Now, inheriting its performance and design philosophy, a special edition—Black Shadow—makes its debut, bringing an even more commanding presence.
The standout feature of this model is the use of the PH (Matte Translucent Black) color. This unique finish combines a matte texture with a sense of depth and transparency, giving the wheel a distinctive look that sharpens the overall impression of the vehicle.
In terms of design, the RAYS machined logo has been added to the spokes. The usual machined line on the rim’s outer edge, featured in previous models, has been intentionally omitted, creating a more solid and tightened aesthetic. This refined presence is unique to the Black Shadow. This model is designed with high-performance 4x4s in mind, such as the Land Cruiser 250 and 300. While maintaining high rigidity and strength, the lightweight design ensures a perfect balance between visual impact and driving performance. The TE37Ultra LARGE P.C.D. Black Shadow adds an air of authority and dynamic performance to your beloved machine.

Size: 18inch/20inch/22inch

Construction Method: Forged 1pc. Wheel, Reverse Rim

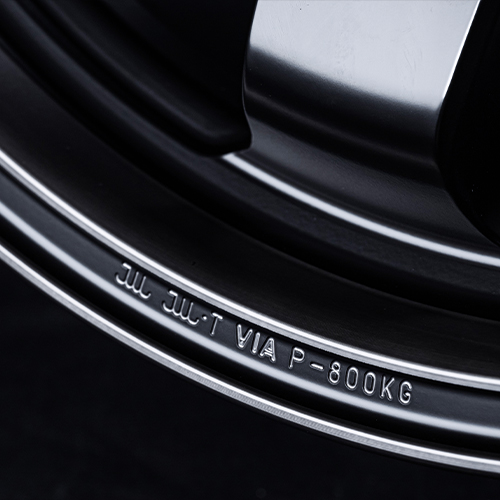

Safety Standards: JWL＆JWL-T +R Spec 2

Color: Matte Translucent Black (PH)

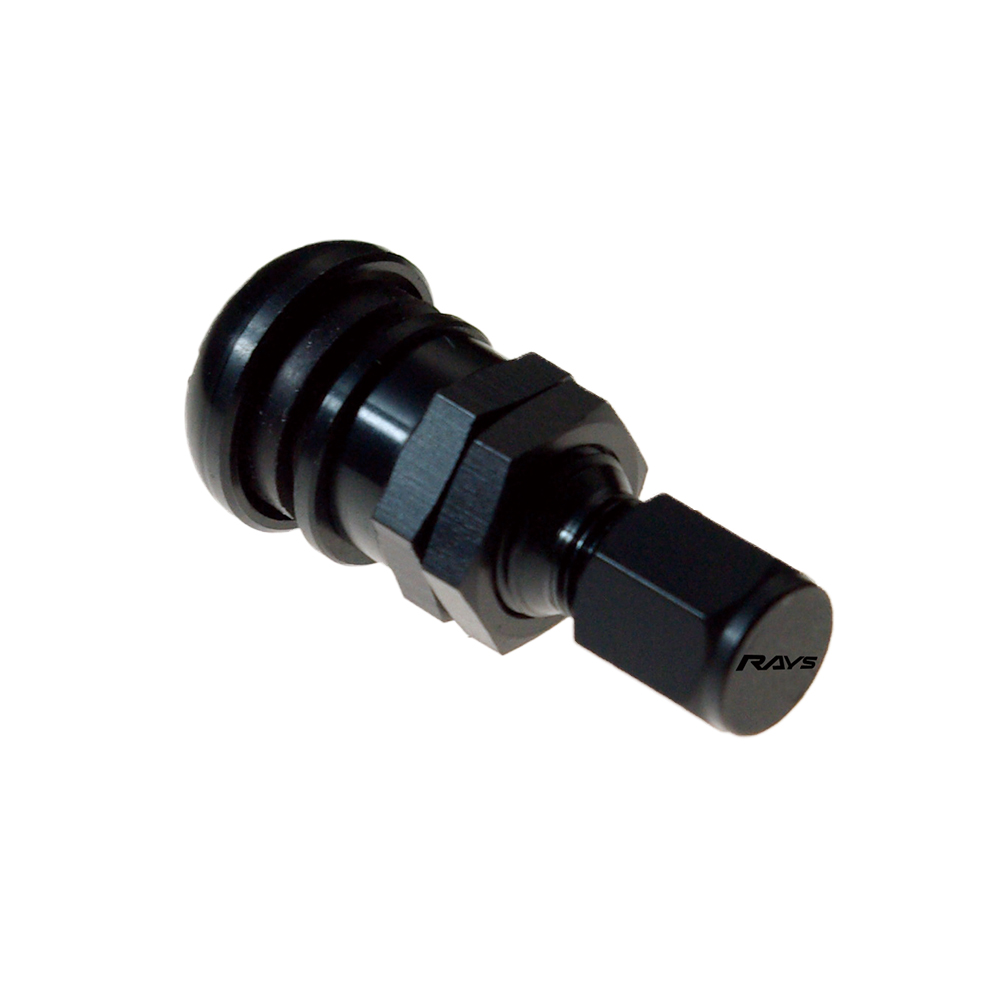

Optional Parts

No.81 VR CAP MODEL-05 6-139.7 BK-Chrome

No.83 VR CAP MODEL-05 5-150 BK-Chrome

No.85 RAYS LPS CAP 6-139.7 BK/RD

No.89 RAYS LPS CAP 6-139.7 BK/BK

Variations

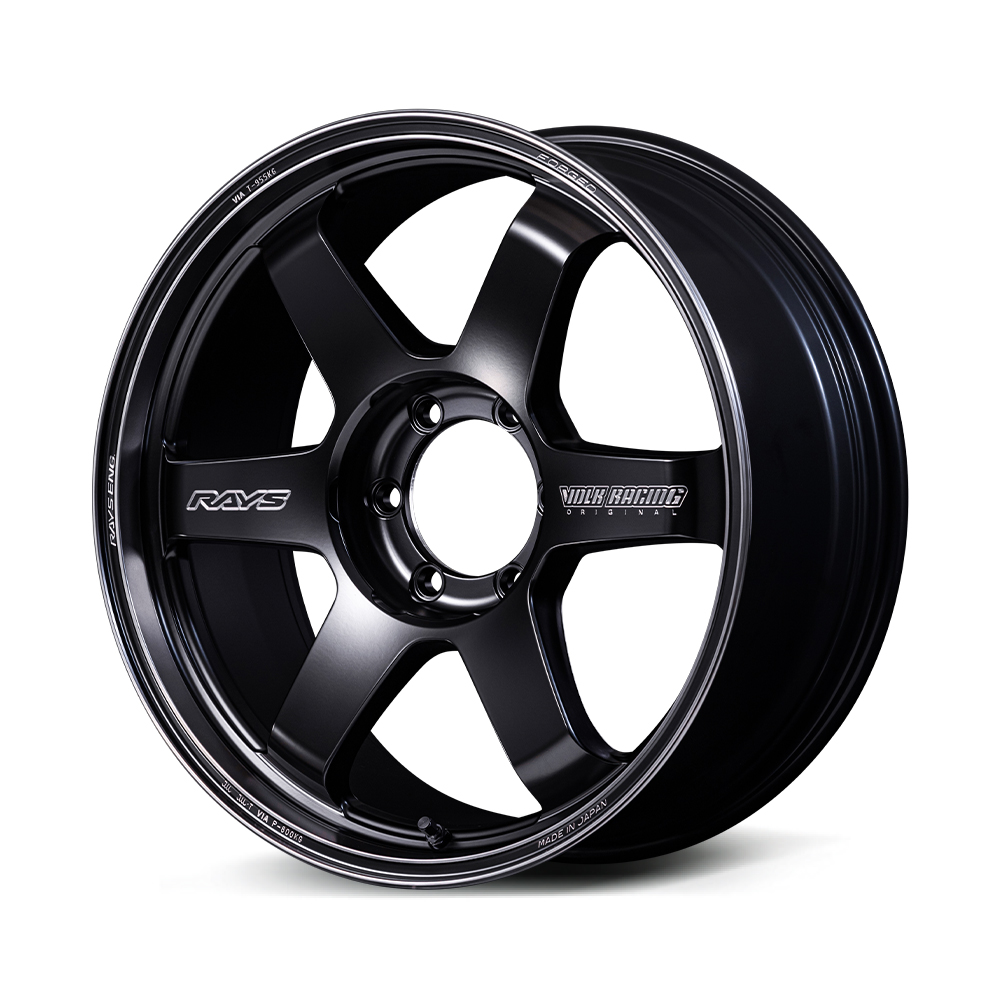

Matte Translucent Black (PH) 20 inch

Matte Translucent Black (PH) 18 inch

Size Chart

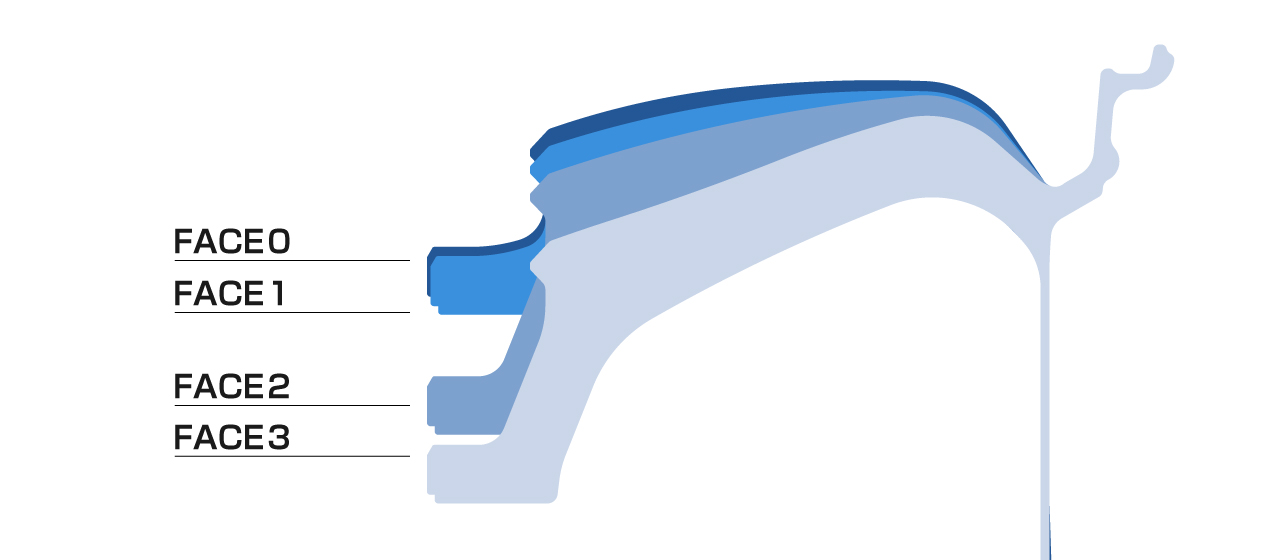

SIZE	FACE	INSET	HOLE	P.C.D.	HUB	DRILL	COLOR	CALIPER	LOAD	CODE
					BORE	(φ)		CLEARANCE	(lbs)
					(φ)
18x8J	F1	36	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER(FJA300W),HIACE(TRH224W), MITSUBISHI TRITON GSR(LC2T)	2,600	02218803616PH
18x8J	F2	20	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER PRADO(TRJ150W),HILUX(GUN125), MITSUBISHI TRITON GSR(LC2T)	2,600	02218802016PH
18x8J	F3	0	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER PRADO(TRJ150W),HILUX(GUN125), MITSUBISHI TRITON GSR(LC2T)	2,600	02218800016PH
18×8.5J	F1	52	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER 250 (TRJ250W/GDJ250W)	2,600	02218855216PH
18×8.5J	F2	44	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER(FJA300W)	2,600	02218854416PH
18x9J	F3	0	6	135	86.9	29-15	PH	FORD F-150 RAPTOR, BRONCO RAPTOR	2,600	02218900017PH
18x9J	F2	50	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER(FJA300W)	2,600	02218905016PH
18x9J	F3	15	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER PRADO(TRJ150W),HILUX(GUN125)	2,600	02218901516PH
18x9J	F3	0	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER(FJA300W),HILUX(GUN125),LAND CRUISER PRADO(TRJ150W)	2,600	02218900016PH
20×8.5J	F0	45	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER(FJA300W)	2,600	02210854516PH
20×8.5J	F2	20	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER PRADO(VZAJ120W/TRJ150W),FJ CRUISER	2,600	02210852016PH
20×9.5J	F1	55	5	150	114	29-15	PH	TOYOTA LAND CRUISER CYGNUS(UZJ100W),LAND CRUISER(UZJ200W),LAND CRUISER ZX(URJ202W)	1,962	02210955518PH
20×9.5J	F2	20	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER PRADO(VZAJ120W/TRJ150W)	2,600	02210952016PH
20×9.5J	F3	0	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER(FZJ80G)	2,600	02210950016PH
22x9J	F1	45	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER(FJA300W)	2,600	02212904516PH
22x9J	F4	20	6	139.7	112	29-15	PH	TOYOTA LAND CRUISER PRADO(VZAJ120W/TRJ150W),FJ CRUISER	2,600	02212902016PH

Features

Matte Translucent Black Color

Featuring the exclusive PH color (Matte Translucent Black) unique to the Black Shadow Limited. The outer rim and center areas are meticulously machined and then finished with a matte black clear coat. This creates a dark, understated look that subtly sparkles when light hits it—revealing a unique and dynamic expression.

Furthermore, by applying a matte smoke clear coat over the machined areas, the finish achieves a refined, subdued shine that enhances the wheel’s sophisticated appearance.

A.M.T. (Advanced Machining Technology)

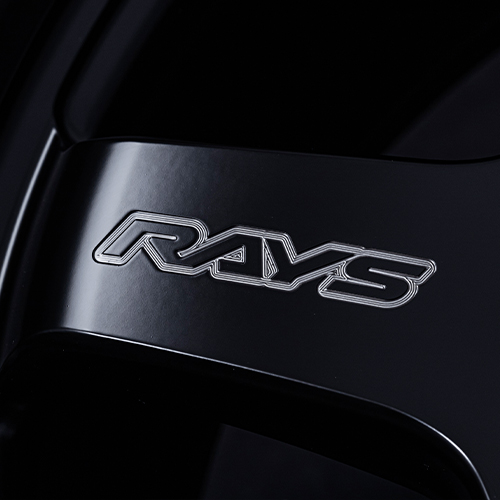

RAYS patented A.M.T. (Advanced Machining Technology) has been employed, adding both precision and style. In addition to the “VOLK RACING” logo, a machined “RAYS” logo is now featured on the spokes, offering a unique visual accent.
