TE37 SONIC BLACK SHADOW LTD
The Long-Awaited “Black Shadow” Color Now Available for TE37SONIC!
Following the debut of the TE37 SAGA S-plus Black Shadow, the BLACK SHADOW LIMITED series continues to grow with an expanding lineup.
This time, the spotlight is on the TE37SONIC, the definitive forged wheel for compact sports cars. Maintaining the original model’s hallmark qualities—exceptional lightweight construction and high rigidity engineered to fully harness the performance of today’s high-grip tires—the new model makes its entrance as a special edition clad in a bold and moody Black Shadow finish. Bring a sharper, more refined look to your compact sport machine with the distinct presence of Black Shadow.
Variations
Matte Translucent Black (PH)
Size Chart
| SIZE | FACE | INSET | Hub | HOLE | P.C.D. | HUB | DRILL | COLOR | CALIPER | DISK | LOAD | CODE |
| Clearance | BORE | (φ) | CLEARANCE | PROTRUSION | (lbs) | |||||||
| (mm) | (φ) | (mm) | ||||||||||
| 15x5J | F1 | 45 | -24 | 4 | 100 | 65 | 29-15 | PH | 5.5 | 1,102 | 02245504592PH | |
| 15×5.5J | F1 | 45 | -28 | 4 | 100 | 65 | 29-15 | PH | 1.1 | 1,102 | 02245554592PH | |
| 15x6J | F2 | 42 | -28 | 4 | 100 | 65 | 29-15 | PH | 1,102 | 02245604292PH | ||
| 15×6.5J | F3 | 36 | -35 | 4 | 100 | 65 | 29-15 | PH | 1,102 | 02245653692PH | ||
| 15x7J | F4 | 35 | -33 | 4 | 100 | 65 | 29-15 | PH | 1,102 | 02245703592PH | ||
| 15x7J | F5 | 25 | -33 | 4 | 100 | 65 | 29-15 | PH | 1,102 | 02245702592PH | ||
| 16×5.5J | F1 | 45 | -25 | 4 | 100 | 65 | 29-15 | PH | 1.8 | 1,168 | 02246554592PH | |
| 16x6J | F1 | 42 | -29 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246604292PH | ||
| 16×6.5J | F1 | 48 | -29 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246654892PH | ||
| 16×6.5J | F1 | 45 | -32 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246654592PH | ||
| 16×6.5J | F2 | 38 | -34 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246653892PH | ||
| 16x7J | F2 | 48 | -31 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246704892PH | ||
| 16x7J | F3 | 35 | -33 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246703592PH | ||
| 16x7J | F4 | 25 | -33 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246702592PH | ||
| 16×7.5J | F3 | 33 | -34 | 4 | 100 | 65 | 29-15 | PH | Ψ | 1,168 | 02246753392PH | |
| 16x8J | F4 | 35 | -26 | 4 | 100 | 65 | 29-15 | PH | 1,168 | 02246803592PH | ||
| 16x8J | F4 | 25 | -36 | 4 | 100 | 65 | 29-15 | PH | Ψ | 1,168 | 02246802592PH |
Caution
※Hub clearance listed with VR CAP MODEL-01 LOW installed. HI-type Center Cap adds extra 11mm clearance.
[ CALIPER CLEARANCE ]
Ψ： ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
Features
Matte Translucent Black Color
This special edition adopts the exclusive PH color, Matte Translucent Black, unique to the Black Shadow Limited series. The outer rim and center areas are diamond-cut and finished with a matte black clear coat, maintaining a dark and stealthy look while revealing a subtle shimmer when touched by light. This finely tuned finish delivers a commanding presence to the vehicle, offering a dynamic appearance that shifts with lighting and surroundings—a finish that brings out a new expression in every situation.

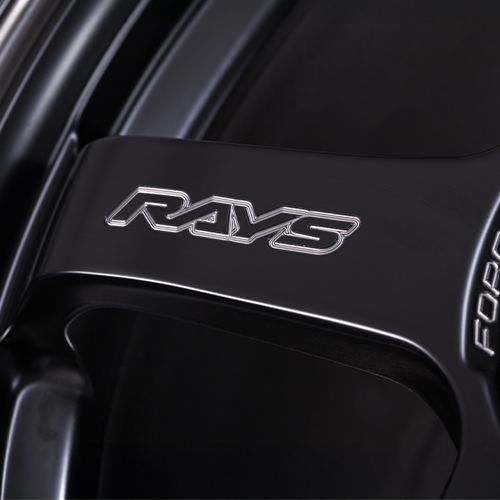

A.M.T. (Advanced Machining Technology)
This model incorporates RAYS proprietary technology, A.M.T. (Advanced Machining Technology), for precision surface detailing. The spokes are adorned with both the “VOLK RACING” and “RAYS” machined logos, creating a unique and refined accent. To complete the look, a matte smoke clear coat is applied over the machined areas, producing a finish that offers a subtle, subdued brilliance—a perfect balance of sophistication and presence.
Aggressive Concave Design
Adopting a powerful concave design that tightens the stance of compact sports cars. The FACE1 to FACE4 lineup, each featuring the most suitable concave design for its size, gives the vehicle a more sporty appearance.
15inch Face
