TE37 SONIC 30TH ANNIVERSARY MACHINING

TE37 SONIC 30th Anniversary Model What’s engraved is not time, but intent.

The performance of compact-class cars continues to evolve with certainty.
Increased tire grip and advances in suspension technology generate higher levels of mechanical grip, significantly raising the loads imposed on wheels.

First introduced in 1996, the TE37 remains active at the forefront of competition today.
The answer to surpassing the TE37 was clear: it had to remain a TE37.
Redesigned from the ground up and optimized for modern compact sports cars, this evolution took form as the TE37 SONIC.

By widening the spokes and relocating the mounting area closer to the rim, both strength and rigidity have been substantially enhanced.
This design ensures the stability required to handle increasingly high-powered compact vehicles, delivering performance that meets the demands of today’s racing scene.

To mark the 30th anniversary of the TE37, the 30th Anniversary Model has been introduced.
Guided by the philosophy of not embellishing simply because it is an anniversary, the current TE37 SONIC was chosen as its foundation. The latest performance serves as the core, while respect for the original is expressed through carefully considered details.

Spoke decals faithfully recreated in the original design are complemented by a discreet “30th anniversary” machining mark on the flange.
In the MC version, the spoke decals themselves are reinterpreted through machining, merging nostalgia with modern manufacturing technology.

This model is not created merely to celebrate the past.
It stands as a statement of intent—demonstrating that VOLK RACING continues to place performance above all else as it looks toward the next 30 years.

Size: 15inch/16inch
Construction Method: Forged 1pc. Wheel
Safety Standards: JWL+R Spec 2
Color: White (WH), Bronze (Almite) (BR)

※Bronze color (Almite) may have uncolored areas besides the design surface. Thank you for your understanding.

Variations

Bronze Almite (BR)

White (WH)

Size Chart

SIZE FACE INSET Hub HOLE P.C.D. HUB DRILL COLOR CALIPER DISK LOAD LOAD CODE
Clearance BORE (φ) CLEARANCE PROTRUSION (kg) (lbs)
(mm) (φ) (mm)
15x5J F0 44 -24 4 100 65 29-15 WH 5.5 500 1,102 02415504492WH
15x5J F0 44 -24 4 100 65 29-15 BR 5.5 500 1,102 02415504492BR
15×5.5J F1 46 -28 4 100 65 29-15 WH 1.1 500 1,102 02415554692WH
15×5.5J F1 46 -28 4 100 65 29-15 BR 1.1 500 1,102 02415554692BR
15x6J F2 43 -28 4 100 65 29-15 WH 500 1,102 02415604392WH
15x6J F2 43 -28 4 100 65 29-15 BR 500 1,102 02415604392BR
16×5.5J F1 46 -25 4 100 65 29-15 WH 1.8 530 1,168 02416554692WH
16×5.5J F1 46 -25 4 100 65 29-15 BR 1.8 530 1,168 02416554692BR
16x6J F1 43 -29 4 100 65 29-15 WH 530 1,168 02416604392WH
16x6J F1 43 -29 4 100 65 29-15 BR 530 1,168 02416604392BR
16×6.5J F1 46 -32 4 100 65 29-15 WH 530 1,168 02416654692WH
16×6.5J F1 46 -32 4 100 65 29-15 BR 530 1,168 02416654692BR
16×6.5J F2 39 -34 4 100 65 29-15 WH 530 1,168 02416653992WH
16×6.5J F2 39 -34 4 100 65 29-15 BR 530 1,168 02416653992BR
16x7J F3 36 -33 4 100 65 29-15 WH 530 1,168 02416703692WH
16x7J F3 36 -33 4 100 65 29-15 BR 530 1,168 02416703692BR
16x7J F4 26 -33 4 100 65 29-15 WH 530 1,168 02416702692WH
16x7J F4 26 -33 4 100 65 29-15 BR 530 1,168 02416702692BR
16×7.5J F3 34 -27 4 100 65 29-15 WH Ψ 530 1,168 02416753492WH
16×7.5J F3 34 -27 4 100 65 29-15 BR Ψ 530 1,168 02416753492BR
16x8J F4 36 -26 4 100 65 29-15 WH 530 1,168 02416803692WH
16x8J F4 36 -26 4 100 65 29-15 BR 530 1,168 02416803692BR

Caution
※ * :Tuner size. (Tire and or wheel may interfere or protrude from the body/fender on normal based vehicles.

[ CALIPER CLEARANCE ]
Ψ: ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.

Features

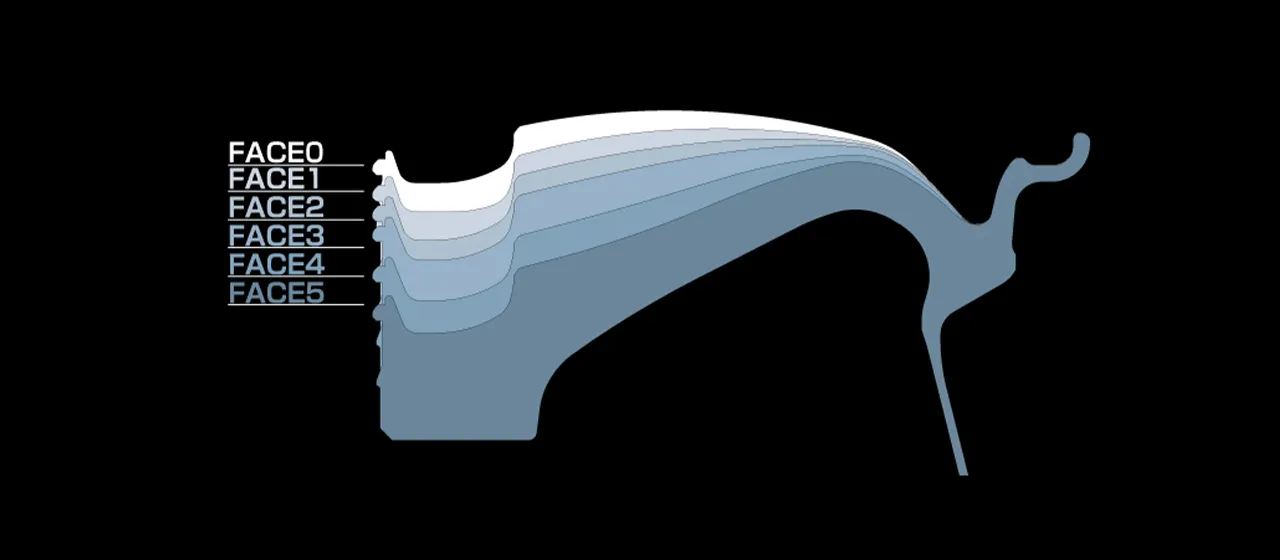

15 inch

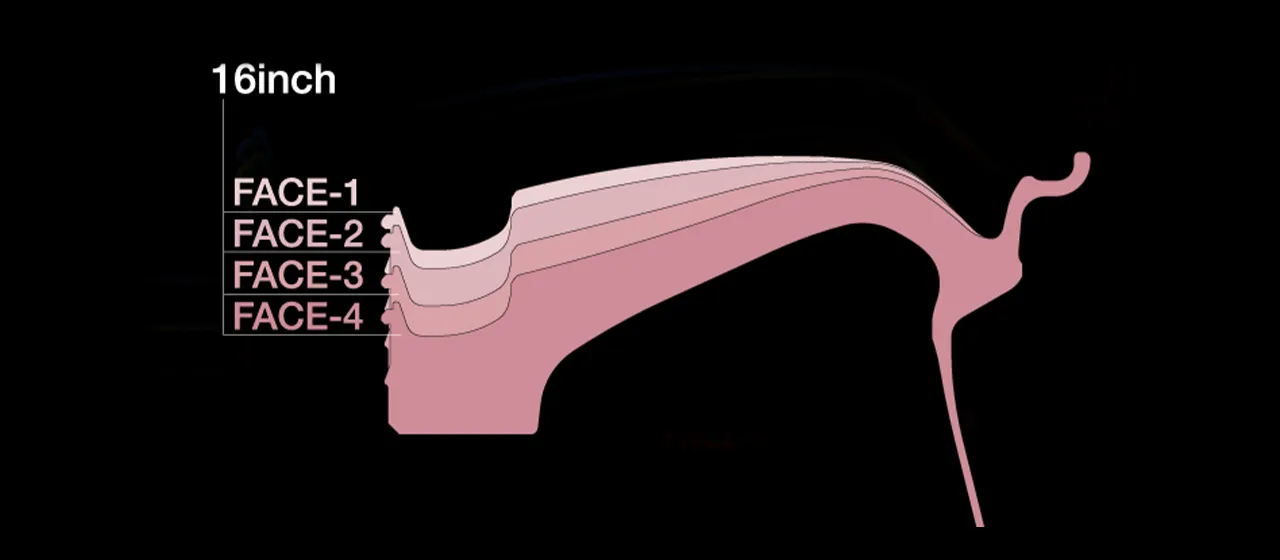

16 inch

30th Common Limited Sticker

A carbon-style box sticker created to commemorate the 30th anniversary. Featuring the “30th Anniversary” logo in a special specification, this sticker is included with all items in the 30th Anniversary series.

30th Machined Logo

The wording “30th ANNIVERSARY” is machined into the flange area. Subtle, yet marking a special milestone at the feet. The valve positioned above the machined area adopts the same blue color used on the original TE37.

Spoke Machining

A special machined logo that engraves RAYS’ 30 years of challenge and evolution. The original TE37 logo, identical to that used on the first-generation model, is applied to the spokes. Through precise machining, it expresses an uncompromising manufacturing spirit and the philosophy of “the lightest and the strongest.”

Spoke Machining
