TE37 SAGA S-PLUS A.S.T.

Introducing the TE37SAGA S-plus, now with next-generation surface treatments.

The TE37SAGA S-plus was born to meet the demands of today’s high-performance cars, which continue to evolve with increased power and weight.
Now, a new color has been introduced to express its function-driven design with even greater elegance and sophistication.

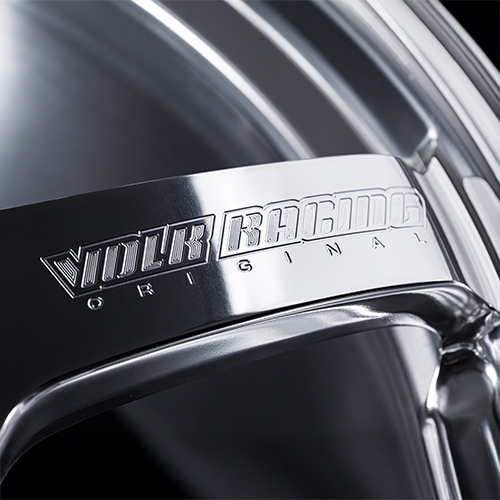

A.S.T. Crystal Buff delivers an unparalleled level of clarity without dullness, while A.S.T. Brushed brings out the raw, intrinsic texture of aluminum to its fullest.
These two innovative finishes, made possible through cutting-edge technology, bring a new brilliance to the TE37SAGA S-plus.

Size: 18inch/19inch/20inch

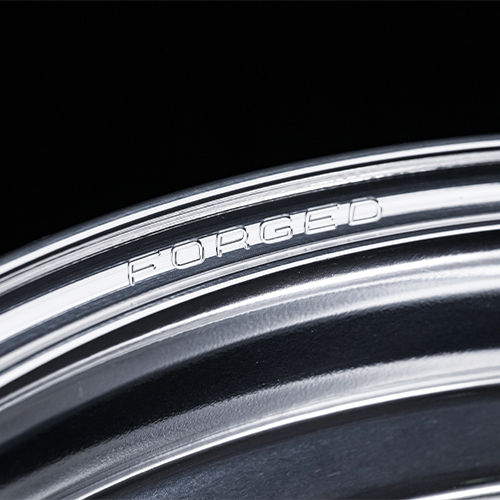

Construction Method: Forged 1pc Wheel, Knurling finish
Safety Standards: JWL+R Spec 2
Color: A.S.T. Brushed(AB), A.S.T. Crystal Buff(CB)

Variations

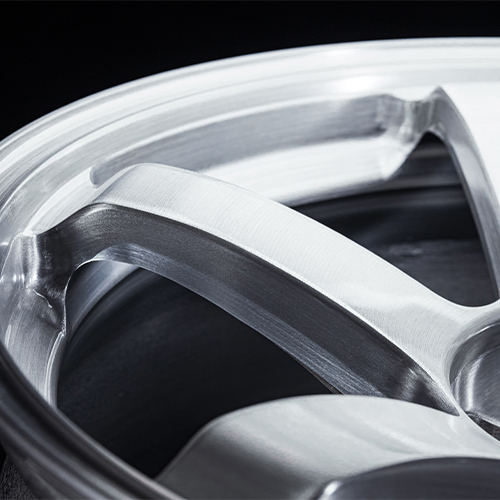

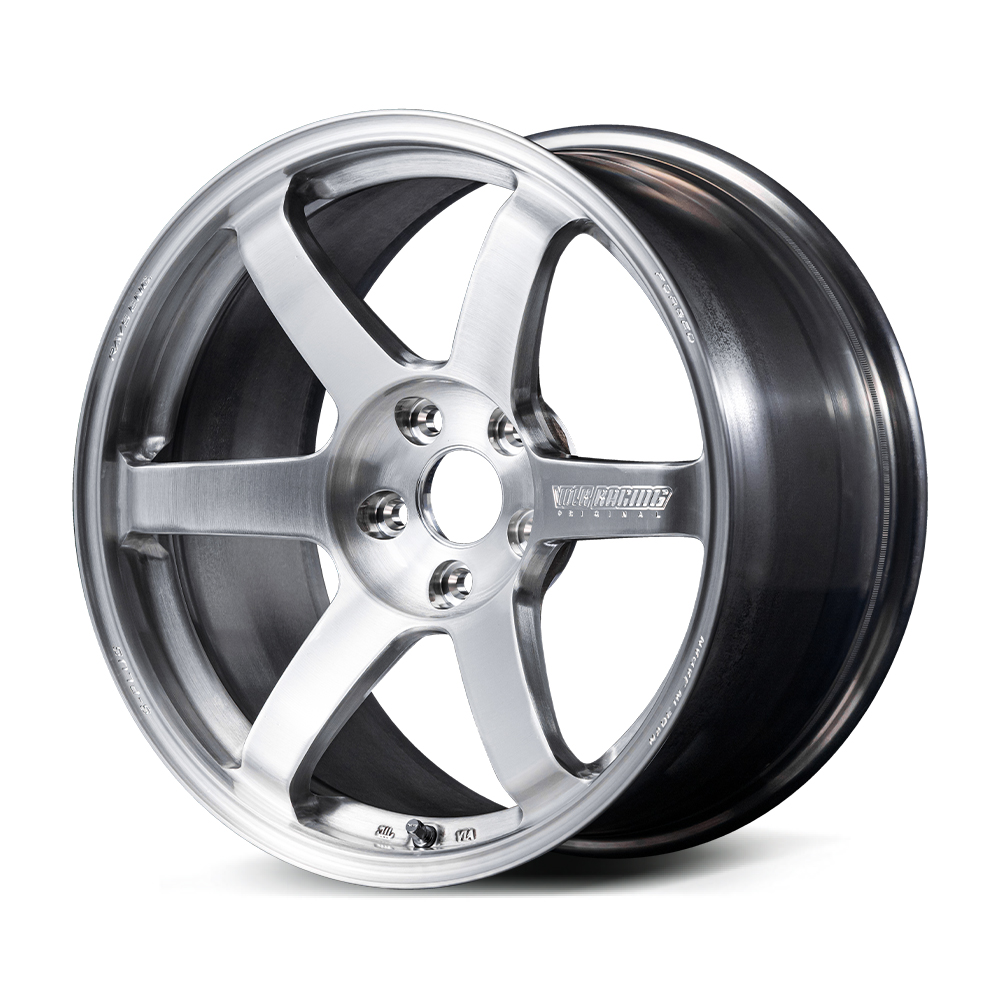

A.S.T. Brushed (AB) 18inch

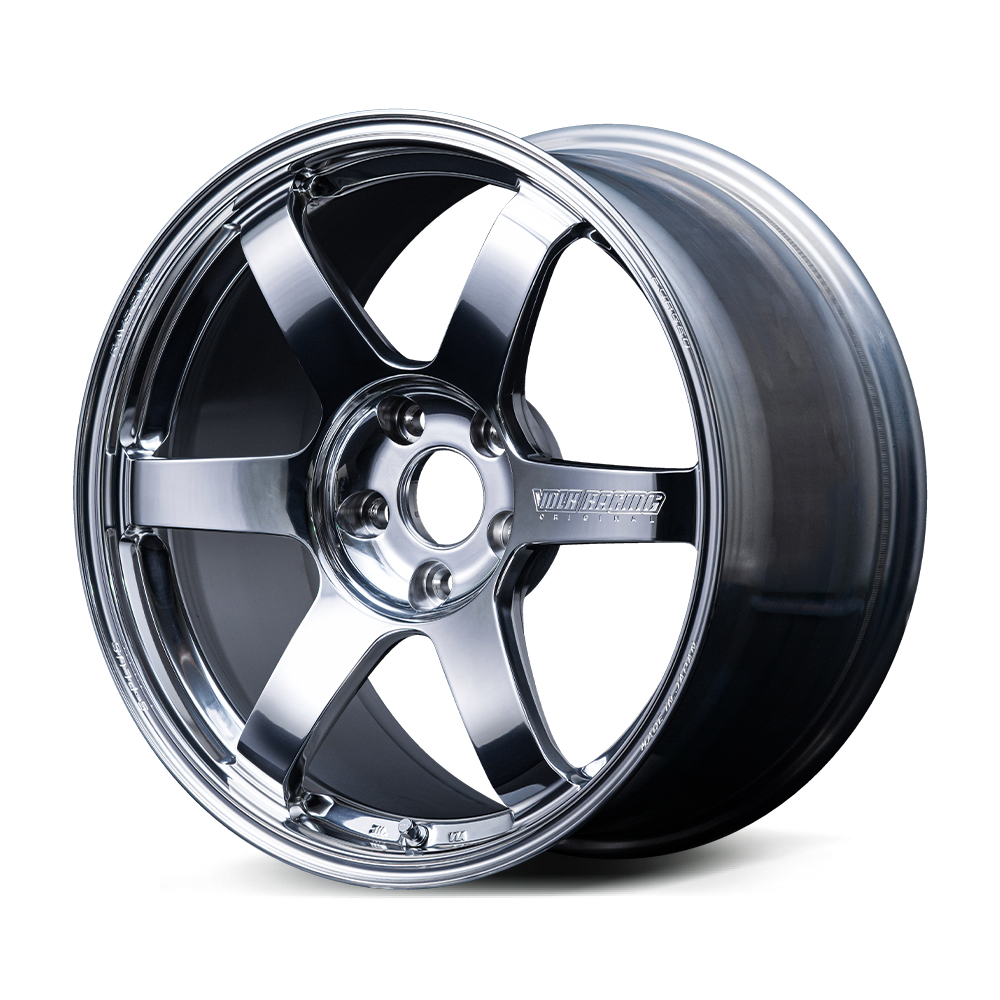

A.S.T. Crystal Buff (CB) 18inch

Size Chart

SIZE FACE INSET Hub HOLE P.C.D. HUB DRILL COLOR CALIPER DISK LOAD CODE
Clearance BORE (φ) CLEARANCE PROTRUSION (lbs)
(mm) (φ) (mm)
18×7.5J F1 48 -26 5 100 65 29-15 AB 1.7 1,543 02308754896AB
18×7.5J F1 48 -26 5 100 65 29-15 CB 1.7 1,543 02308754896CB
18×7.5J
F1 48 -26 5 114.3 73.1 32-15 AB 1.7 1,543 02308754895AB
18×7.5J F1 48 -26 5 114.3 73.1 32-15 CB 1.7 1,543 02308754895CB
18x8J F1 45 -28 5 100 65 29-15 AB 1.7 1,543 02308804596AB
18x8J F1 45 -28 5 100 65 29-15 CB 1.7 1,543 02308804596CB
18x8J F1 45 -28 5 114.3 73.1 32-15 AB Θη⊿〓 1.7 1,543 02308804595AB
18x8J F1 45 -28 5 114.3 73.1 32-15 CB Θη⊿〓 1.7 1,543 02308804595CB
18x8J F1 45 -28 5 120 72.6 32-15 AB BMW 120i(E87)Rr. 1.7 1,543 02308804521AB
18x8J F1 45 -28 5 120 72.6 32-15 CB BMW 120i(E87)Rr. 1.7 1,543 02308804521CB
18×8.5J F2 45 -21 5 100 65 29-15 AB 1,543 02308854596AB
18×8.5J F2 45 -21 5 100 65 29-15 CB 1,543 02308854596CB
18×8.5J F2 42 -24 5 112 66.6 32-15 AB AUDI TT(8J) 1,543 02308854220AB
18×8.5J F2 42 -24 5 112 66.6 32-15 CB AUDI TT(8J) 1,543 02308854220CB
18×8.5J F1 50 -30 5 114.3 73.1 32-15 AB ▽Θη■⊿#▲〓 1.7 1,543 02308855095AB
18×8.5J F1 50 -30 5 114.3 73.1 32-15 CB ▽Θη■⊿#▲〓 1.7 1,543 02308855095CB
18×8.5J F2 42 -24 5 114.3 73.1 32-15 AB Θη■⊿〓 1,543 02308854295AB
18×8.5J F2 42 -24 5 114.3 73.1 32-15 CB Θη■⊿〓 1,543 02308854295CB
18×8.5J F2 35 -31 5 114.3 73.1 32-15 AB ▽Θη■⊿#△○★〓 1,543 02308853595AB
18×8.5J F2 35 -31 5 114.3 73.1 32-15 CB ▽Θη■⊿#△○★〓 1,543 02308853595CB
18x9J F2 52 -21 5 100 65 29-15 AB 2,600 02308905296AB
18x9J F2 52 -21 5 100 65 29-15 CB 2,600 02308905296CB
18x9J F3 27 -33 5 112 66.6 32-15 AB TOYOTA GR SUPRA RZ(DB42)Fr. 2,600 02308902720AB
18x9J F3 27 -33 5 112 66.6 32-15 CB TOYOTA GR SUPRA RZ(DB42)Fr. 2,600 02308902720CB
18x9J F2 45 -28 5 114.3 73.1 32-15 AB ▽Θη■⊿#□▲●〓 2,600 02308904595AB
18x9J F2 45 -28 5 114.3 73.1 32-15 CB ▽Θη■⊿#□▲●〓 2,600 02308904595CB
18x9J F3 35 -25 5 114.3 73.1 32-15 AB ▽Θη■⊿#□▲●〓 2,600 02308903595AB
18x9J F3 35 -25 5 114.3 73.1 32-15 CB ▽Θη■⊿#□▲●〓 2,600 02308903595CB
18x9J F2 50 -23 5 120 72.6 32-15 AB HONDA CIVIC TYPE R(FK8,FL5)* 2,600 02308905021AB
18x9J F2 50 -23 5 120 72.6 32-15 CB HONDA CIVIC TYPE R(FK8,FL5)* 2,600 02308905021CB
18x9J F3 20 -40 5 120 72.6 32-15 AB BMW M4 Coupe(F82)Fr,M3(E92)Fr. 2,600 02308902021AB
18x9J F3 20 -40 5 120 72.6 32-15 CB BMW M4 Coupe(F82)Fr,M3(E92)Fr. 2,600 02308902021CB
18×9.5J F3 43 -23 5 100 65 29-15 AB 1,543 02308954396AB
18×9.5J F3 43 -23 5 100 65 29-15 CB 1,543 02308954396CB
18×9.5J F4 20 -26 5 112 66.6 32-15 AB TOYOTA GR SUPRA RZ(DB42)Fr. 1,543 02308952020AB
18×9.5J F4 20 -26 5 112 66.6 32-15 CB TOYOTA GR SUPRA RZ(DB42)Fr. 1,543 02308952020CB
18×9.5J F3 45 -21 5 114.3 73.1 32-15 AB Θη■⊿〓 1,543 02308954595AB
18×9.5J F3 45 -21 5 114.3 73.1 32-15 CB Θη■⊿〓 1,543 02308954595CB
18×9.5J F3 38 -28 5 114.3 73.1 32-15 AB ▽Θη■⊿◎#△○★◆〓 1,543 02308953895AB
18×9.5J F3 38 -28 5 114.3 73.1 32-15 CB ▽Θη■⊿◎#△○★◆〓 1,543 02308953895CB
18×9.5J F4 30 -21 5 114.3 73.1 32-15 AB η⊿◎●◆〓 1,543 02308953095AB
18×9.5J F4 30 -21 5 114.3 73.1 32-15 CB η⊿◎●◆〓 1,543 02308953095CB
18×9.5J F4 22 -24 5 114.3 73.1 32-15 AB ▽Θη■⊿◎#□▲●★◇〓 1,543 02308952295AB
18×9.5J F4 22 -24 5 114.3 73.1 32-15 CB ▽Θη■⊿◎#□▲●★◇〓 1,543 02308952295CB
18×9.5J F3 45 -21 5 120 72.6 32-15 AB HONDA CIVIC TYPE R(FK8,FL5)* 1,543 02308954521AB
18×9.5J F3 45 -21 5 120 72.6 32-15 CB HONDA CIVIC TYPE R(FK8,FL5)* 1,543 02308954521CB
18×9.5J F4 20 -26 5 120 72.6 32-15 AB BMW M2 Coupe(F87)Fr,M4 Coupe(F82)Fr,M3(E92) 1,543 02308952021AB
18×9.5J F4 20 -26 5 120 72.6 32-15 CB BMW M2 Coupe(F87)Fr,M4 Coupe(F82)Fr,M3(E92) 1,543 02308952021CB
18x10J F4 34 -24 5 112 66.6 32-15 AB TOYOTA GR SUPRA RZ(DB42)Rr. 1,543 02308103420AB
18x10J F4 34 -24 5 112 66.6 32-15 CB TOYOTA GR SUPRA RZ(DB42)Rr. 1,543 02308103420CB
18x10J F4 35 -23 5 114.3 73.1 32-15 AB η■⊿◎□●◆〓 1,543 02308103595AB
18x10J F4 35 -23 5 114.3 73.1 32-15 CB η■⊿◎□●◆〓 1,543 02308103595CB
18×10.5J F4 30 -29 5 112 66.6 32-15 AB TOYOTA GR SUPRA RZ(DB42)Rr. 1,543 02308053020AB
18×10.5J F4 30 -29 5 112 66.6 32-15 CB TOYOTA GR SUPRA RZ(DB42)Rr. 1,543 02308053020CB
18×10.5J F4 24 -35 5 114.3 73.1 32-15 AB ▽Θη■⊿◎#△○☆◇〓 1,543 02308052495AB
18×10.5J F4 24 -35 5 114.3 73.1 32-15 CB ▽Θη■⊿◎#△○☆◇〓 1,543 02308052495CB
18×10.5J F4 15 -44 5 114.3 73.1 32-15 AB ▽Θη■⊿◎#△○☆◇〓 1,543 02308051595AB
18×10.5J F4 15 -44 5 114.3 73.1 32-15 CB ▽Θη■⊿◎#△○☆◇〓 1,543 02308051595CB
18×10.5J F4 30 -29 5 120 72.6 32-15 AB BMW M2 Coupe(F87)Rr,M4 Coupe(F82)Rr,M3(E92)Rr. 1,543 02308053021AB
18×10.5J F4 30 -29 5 120 72.6 32-15 CB BMW M2 Coupe(F87)Rr,M4 Coupe(F82)Rr,M3(E92)Rr. 1,543 02308053021CB
18x11J F5 45 -25 5 114.3 73.1 32-15 AB ⊿◎◇◆ 1,543 02308114595AB
18x11J F5 45 -25 5 114.3 73.1 32-15 CB ⊿◎◇◆ 1,543 02308114595CB
18x11J F5 13 -45 5 114.3 73.1 32-15 AB ▽Θη■⊿◎#△○☆◇〓 1,543 02308111395AB
18x11J F5 13 -45 5 114.3 73.1 32-15 CB ▽Θη■⊿◎#△○☆◇〓 1,543 02308111395CB
18x12J F5 26 -45 5 114.3 73.1 32-15 AB ▽Θη■⊿◎#△○☆◇ 1,543 02308122695AB
18x12J F5 26 -45 5 114.3 73.1 32-15 CB ▽Θη■⊿◎#△○☆◇ 1,543 02308122695CB
19×8.5J F1 45 -32 5 108 73.1 32-15 AB VOLVO XC40(XB), LAND ROVER DISCOVERY SPORT(LC2), RANGE ROVER EVOQUE(LZ) 1 1,797 02309854542AB
19×8.5J F1 45 -32 5 108 73.1 32-15 CB VOLVO XC40(XB), LAND ROVER DISCOVERY SPORT(LC2), RANGE ROVER EVOQUE(LZ) 1 1,797 02309854542CB
19×8.5J F1 45 -32 5 112 66.6 32-15 AB AUDI A3(8V),A4(8E,8K) ※except 3.2FSI, MINI CROSSOVER(F60) VW GOLF(Ⅶ)※includes R 1 1,797 02309854520AB
19×8.5J F1 45 -32 5 112 66.6 32-15 CB AUDI A3(8V),A4(8E,8K) ※except 3.2FSI, MINI CROSSOVER(F60) VW GOLF(Ⅶ)※includes R 1 1,797 02309854520CB
19×8.5J F2 38 -23 5 112 66.6 32-15 AB AUDI A3(8V),A4(8K)※except 3.2FSI, MINI CROSSOVER(F60)※except Cooper D VW GOLF(Ⅶ)※includes R 1,797 02309853820AB
19×8.5J F2 38 -23 5 112 66.6 32-15 CB AUDI A3(8V),A4(8K)※except 3.2FSI, MINI CROSSOVER(F60)※except Cooper D VW GOLF(Ⅶ)※includes R 1,797 02309853820CB
19×8.5J F2 22 -33 5 112 66.6 32-15 AB BMW 3er.(G20)Fr. 1,797 02309852220AB
19×8.5J F2 22 -33 5 112 66.6 32-15 CB BMW 3er.(G20)Fr. 1,797 02309852220CB
19×8.5J F1 45 -32 5 114.3 73.1 32-15 AB η⊿◎〓 1 1,797 02309854595AB
19×8.5J F1 45 -32 5 114.3 73.1 32-15 CB η⊿◎〓 1 1,797 02309854595CB
19×8.5J F1 42 -35 5 114.3 73.1 32-15 AB ηθ■⊿◎〓 1 1,797 02309854295AB
19×8.5J F1 42 -35 5 114.3 73.1 32-15 CB ηθ■⊿◎〓 1 1,797 02309854295CB
19×8.5J F2 38 -23 5 114.3 73.1 32-15 AB η⊿〓 1,797 02309853895AB
19×8.5J F2 38 -23 5 114.3 73.1 32-15 CB η⊿〓 1,797 02309853895CB
19×8.5J F2 36 -25 5 120 72.6 32-15 AB BMW:3er(F30)Fr. 1,797 02309853621AB
19×8.5J F2 36 -25 5 120 72.6 32-15 CB BMW:3er(F30)Fr. 1,797 02309853621CB
19×8.5J F1 55 -23 5 130 71.6 32-R14 AB PORSCHE CAYMAN GT4(981DBX)Fr, BOXSTER(981)Fr. 1 1,797 02309855539AB
19×8.5J F1 55 -23 5 130 71.6 32-R14 CB PORSCHE CAYMAN GT4(981DBX)Fr, BOXSTER(981)Fr. 1 1,797 02309855539CB
19×8.5J F1 50 -28 5 130 71.6 32-R14 AB PORSCHE 911 CARRERA S(997,991)Fr. 1 1,797 02309855039AB
19×8.5J F1 50 -28 5 130 71.6 32-R14 CB PORSCHE 911 CARRERA S(997,991)Fr. 1 1,797 02309855039CB
19x9J F1 35 -32 5 114.3 73.1 32-15 AB η▽▼θ■⊿◎#△□▲αβγ○●Ω☆★Σ◇◆〓 1 1,797 02309903595AB
19x9J F1 35 -32 5 114.3 73.1 32-15 CB η▽▼θ■⊿◎#△□▲αβγ○●Ω☆★Σ◇◆〓 1 1,797 02309903595CB
19x9J F3 23 -29 5 120 72.6 32-15 AB BMW M2(Competition 2U30)Fr,M2 Coupe(F87)Fr,M235i(F22)Fr,M235i Racing(F22)Fr. 1,797 02309902321AB
19x9J F3 23 -29 5 120 72.6 32-15 CB BMW M2(Competition 2U30)Fr,M2 Coupe(F87)Fr,M235i(F22)Fr,M235i Racing(F22)Fr. 1,797 02309902321CB
19x9J F2 46 -28 5 130 71.6 32-R14 AB PORSCHE 911 GT3 RS(997)Fr. 1,797 02309904639AB
19x9J F2 46 -28 5 130 71.6 32-R14 CB PORSCHE 911 GT3 RS(997)Fr. 1,797 02309904639CB
19×9.5J F2 38 -36 5 112 66.6 32-15 AB BMW 3er.(G20)Rr 1,797 02309953820AB
19×9.5J F2 38 -36 5 112 66.6 32-15 CB BMW 3er.(G20)Rr 1,797 02309953820CB
19×9.5J F3 25 -22 5 112 66.6 32-15 AB AUDI A5(8T), BMW 5er.(G30),Z4(G29)Fr. , TOYOTA GR SUPRA(DB)Fr. 1,797 02309952520AB
19×9.5J F3 25 -22 5 112 66.6 32-15 CB AUDI A5(8T), BMW 5er.(G30),Z4(G29)Fr. , TOYOTA GR SUPRA(DB)Fr. 1,797 02309952520CB
19×9.5J F3 15 -32 5 112 66.6 32-15 AB BMW M2 Coupe(G87)Fr,M4 Competition CCB (G82)Fr. 1,797 02309951520AB
19×9.5J F3 15 -32 5 112 66.6 32-15 CB BMW M2 Coupe(G87)Fr,M4 Competition CCB (G82)Fr. 1,797 02309951520CB
19×9.5J F2 45 -29 5 114.3 73.1 32-15 AB ηθ■⊿◎〓 1,797 02309954595AB
19×9.5J F2 45 -29 5 114.3 73.1 32-15 CB ηθ■⊿◎〓 1,797 02309954595CB
19×9.5J F2 35 -39 5 114.3 73.1 32-15 AB η▽▼θ■⊿◎#△□▲αβγ○●Ω★◇◆〓 1,797 02309953595AB
19×9.5J F2 35 -39 5 114.3 73.1 32-15 CB η▽▼θ■⊿◎#△□▲αβγ○●Ω★◇◆〓 1,797 02309953595CB
19×9.5J F3 22 -25 5 114.3 73.1 32-15 AB ηθ■⊿◎□▲αβ●◇◆〓 1,797 02309952295AB
19×9.5J F3 22 -25 5 114.3 73.1 32-15 CB ηθ■⊿◎□▲αβ●◇◆〓 1,797 02309952295CB
19×9.5J F4 12 -40 5 114.3 73.1 32-15 AB η▽▼θ■⊿◎#□▲αβ●★◇◆〓 1,797 02309951295AB
19×9.5J F4 12 -40 5 114.3 73.1 32-15 CB η▽▼θ■⊿◎#□▲αβ●★◇◆〓 1,797 02309951295CB
19×9.5J F1 55 -35 5 120 72.6 32-15 AB HONDA CIVIC TYPE-R(FK8,FL5) 1 1,797 02309955521AB
19×9.5J F1 55 -35 5 120 72.6 32-15 CB HONDA CIVIC TYPE-R(FK8,FL5) 1 1,797 02309955521CB
19×9.5J F2 45 -29 5 120 72.6 32-15 AB BMW 3er.(F30)Rr., HONDA CIVIC TYPE-R(FK8,FL5)* 1,797 02309954521AB
19×9.5J F2 45 -29 5 120 72.6 32-15 CB BMW 3er.(F30)Rr., HONDA CIVIC TYPE-R(FK8,FL5)* 1,797 02309954521CB
19×9.5J F2 36 -32 5 120 72.6 32-15 AB HONDA CIVIC TYPE-R(FK8,FL5) 1,797 02309953621AB
19×9.5J F2 36 -32 5 120 72.6 32-15 CB HONDA CIVIC TYPE-R(FK8,FL5) 1,797 02309953621CB
19x10J F4 15 -31 5 112 66.6 32-15 AB BMW M2 Coupe(G87)Fr, M4 Competition CCB(G82)Fr. 1,797 02309101520AB
19x10J F4 15 -31 5 112 66.6 32-15 CB BMW M2 Coupe(G87)Fr, M4 Competition CCB(G82)Fr. 1,797 02309101520CB
19x10J F3 35 -18 5 114.3 73.1 32-15 AB η⊿◎〓 1,797 02309103595AB
19x10J F3 35 -18 5 114.3 73.1 32-15 CB η⊿◎〓 1,797 02309103595CB
19x10J F4 18 -40 5 114.3 73.1 32-15 AB ηθ■⊿◎□▲αβ●◇◆〓 1,797 02309101895AB
19x10J F4 18 -40 5 114.3 73.1 32-15 CB ηθ■⊿◎□▲αβ●◇◆〓 1,797 02309101895CB
19x10J F3 34 -31 5 120 72.6 32-15 AB BMW M2(Competition 2U30)Rr,M2 Coupe(F87)Rr,M235i(F22)Rr,M235i Racing(F22)Rr. 1,797 02309103421AB
19x10J F3 34 -31 5 120 72.6 32-15 CB BMW M2(Competition 2U30)Rr,M2 Coupe(F87)Rr,M235i(F22)Rr,M235i Racing(F22)Rr. 1,797 02309103421CB
19x10J F3 40 -26 5 130 71.6 32-R14 AB PORSCHE CAYMAN GT4(981DBX)Rr, BOXSTER(981)Rr. 1,797 02309104039AB
19x10J F3 40 -26 5 130 71.6 32-R14 CB PORSCHE CAYMAN GT4(981DBX)Rr, BOXSTER(981)Rr. 1,797 02309104039CB
19×10.5J F4 33 -28 5 112 66.6 32-15 AB BMW 5er.(G30)Rr,Z4(G29)Rr., TOYOTA GR SUPRA(DB)Rr. 1,797 02309053320AB
19×10.5J F4 33 -28 5 112 66.6 32-15 CB BMW 5er.(G30)Rr,Z4(G29)Rr., TOYOTA GR SUPRA(DB)Rr. 1,797 02309053320CB
19×10.5J F4 30 -31 5 114.3 73.1 32-15 AB η⊿◎◇◆〓 1,797 02309053095AB
19×10.5J F4 30 -31 5 114.3 73.1 32-15 CB η⊿◎◇◆〓 1,797 02309053095CB
19×10.5J F4 22 -28 5 114.3 73.1 32-15 AB η▽▼θ■⊿◎#□▲αβ●★◇◆〓 1,797 02309052295AB
19×10.5J F4 22 -28 5 114.3 73.1 32-15 CB η▽▼θ■⊿◎#□▲αβ●★◇◆〓 1,797 02309052295CB
19×10.5J F4 15 -38 5 114.3 73.1 32-15 AB η▽▼θ■⊿◎#△□▲αβγ○●Ω☆★Σ◇◆〓 1,797 02309051595AB
19×10.5J F4 15 -38 5 114.3 73.1 32-15 CB η▽▼θ■⊿◎#△□▲αβγ○●Ω☆★Σ◇◆〓 1,797 02309051595CB
19×10.5J F3 47 -24 5 130 71.6 32-R14 AB PORSCHE CAYMAN GT4(981DBX)Rr, BOXSTER(981)Rr. 1,797 02309054739AB
19×10.5J F3 47 -24 5 130 71.6 32-R14 CB PORSCHE CAYMAN GT4(981DBX)Rr, BOXSTER(981)Rr. 1,797 02309054739CB
19x11J F4 35 -21 5 112 66.6 32-15 AB BMW Z4(G29)Rr., TOYOTA GR SUPRA(DB)Rr. 1,797 02309113520AB
19x11J F4 35 -21 5 112 66.6 32-15 CB BMW Z4(G29)Rr., TOYOTA GR SUPRA(DB)Rr. 1,797 02309113520CB
19x11J F4 22 -34 5 114.3 73.1 32-15 AB η▽▼θ■⊿◎#△□▲αβγ○●Ω★◇◆〓 1,797 02309112295AB
19x11J F4 22 -34 5 114.3 73.1 32-15 CB η▽▼θ■⊿◎#△□▲αβγ○●Ω★◇◆〓 1,797 02309112295CB
19x11J F4 18 -41 5 114.3 73.1 32-15 AB η▽▼θ■⊿◎#△□▲αβγ○●Ω☆★Σ◇◆〓 1,797 02309111895AB
19x11J F4 18 -41 5 114.3 73.1 32-15 CB η▽▼θ■⊿◎#△□▲αβγ○●Ω☆★Σ◇◆〓 1,797 02309111895CB
19x11J F3 50 -29 5 130 71.6 32-R14 AB PORSCHE CAYMAN GT4(981DBX)Rr. 1,797 02309115039AB
19x11J F3 50 -29 5 130 71.6 32-R14 CB PORSCHE CAYMAN GT4(981DBX)Rr. 1,797 02309115039CB
19×11.5J F3 62 -23 5 130 71.6 32-R14 AB PORSCHE 911 CARRERA S(997,991)Rr. 1,797 02309156239AB
19×11.5J F3 62 -23 5 130 71.6 32-R14 CB PORSCHE 911 CARRERA S(997,991)Rr. 1,797 02309156239CB
19x12J F4 48 -36 5 130 71.6 32-R14 AB PORSCHE 911 GT3 RS(997)Rr. 1,797 02309124839AB
19x12J F4 48 -36 5 130 71.6 32-R14 CB PORSCHE 911 GT3 RS(997)Rr. 1,797 02309124839CB
20×8.5J F1 43 -36 5 108 73.1 32-15 AB VOLVO V60(FB420) 4.5 1,852 02300854342AB
20×8.5J F1 43 -36 5 108 73.1 32-15 CB VOLVO V60(FB420) 4.5 1,852 02300854342CB
20×8.5J F1 36 -43 5 112 66.6 32-15 AB AUDI RS3(8VCZGF/8VDAZL/GYDNWF) 4.5 1,852 02300853620AB
20×8.5J F1 36 -43 5 112 66.6 32-15 CB AUDI RS3(8VCZGF/8VDAZL/GYDNWF) 4.5 1,852 02300853620CB
20×8.5J F2 25 -44 5 112 66.6 32-15 AB BMW 530i(G30)Fr. 1 1,852 02300852520AB
20×8.5J F2 25 -44 5 112 66.6 32-15 CB BMW 530i(G30)Fr. 1 1,852 02300852520CB
20×8.5J F1 45 -34 5 114.3 73.1 32-15 AB η■⊿◎〓 4.5 1,852 02300854595AB
20×8.5J F1 45 -34 5 114.3 73.1 32-15 CB η■⊿◎〓 4.5 1,852 02300854595CB
20×8.5J F1 36 -43 5 114.3 73.1 32-15 AB ▽▼θη■⊿◎#△▲□αβγ○●Ω★◇◆〓 4.5 1,852 02300853695AB
20×8.5J F1 36 -43 5 114.3 73.1 32-15 CB ▽▼θη■⊿◎#△▲□αβγ○●Ω★◇◆〓 4.5 1,852 02300853695CB
20×8.5J F1 45 -34 5 120 72.6 32-15 AB TOYOTA ALPHARD(AGH40W) 4.5 1,852 02300854521AB
20×8.5J F1 45 -34 5 120 72.6 32-15 CB TOYOTA ALPHARD(AGH40W) 4.5 1,852 02300854521CB
20×8.5J F1 38 -41 5 120 72.6 32-15 AB TOYOTA ALPHARD(AGH40W) 4.5 1,852 02300853821AB
20×8.5J F1 38 -41 5 120 72.6 32-15 CB TOYOTA ALPHARD(AGH40W) 4.5 1,852 02300853821CB
20×8.5J F1 50 -29 5 130 71.6 32-R14 AB PORSCHE 911CarreraS(991)Fr,BOXSTER(981)Fr,Cayman GT4(981DBX)Fr. 4.5 1,852 02300855039AB
20×8.5J F1 50 -29 5 130 71.6 32-R14 CB PORSCHE 911CarreraS(991)Fr,BOXSTER(981)Fr,Cayman GT4(981DBX)Fr. 4.5 1,852 02300855039CB
20x9J F2 27 -49 5 112 66.6 32-15 AB AUDI S5(F5CWGL),S7(4GCEUL), Q5(FYDETS), BMW Z4 M40i(G29)Fr. BENZ AMG E43 4MATIC(W213),CLS450 4MATIC(C257) 1 1,852 02300902720AB
20x9J F2 27 -49 5 112 66.6 32-15 CB AUDI S5(F5CWGL),S7(4GCEUL), Q5(FYDETS), BMW Z4 M40i(G29)Fr. BENZ AMG E43 4MATIC(W213),CLS450 4MATIC(C257) 1 1,852 02300902720CB
20x9J F3 20 -36 5 112 66.6 32-15 AB PORSCHE Macan S(95BCTM(A))Fr. 1,852 02300902020AB
20x9J F3 20 -36 5 112 66.6 32-15 CB PORSCHE Macan S(95BCTM(A))Fr. 1,852 02300902020CB
20x9J F2 37 -39 5 114.3 73.1 32-15 AB ▽▼θη■⊿◎#▲□αβ●◇◆〓 1 1,852 02300903795AB
20x9J F2 37 -39 5 114.3 73.1 32-15 CB ▽▼θη■⊿◎#▲□αβ●◇◆〓 1 1,852 02300903795CB
20x9J F2 44 -32 5 120 72.6 32-15 AB LANDROVER DEFENDER(LE72WAB) 1 1,852 02300904421AB
20x9J F2 44 -32 5 120 72.6 32-15 CB LANDROVER DEFENDER(LE72WAB) 1 1,852 02300904421CB
20x9J F2 38 -38 5 120 72.6 32-15 AB TESLA MODEL X(Fr) 1 1,852 02300903821AB
20x9J F2 38 -38 5 120 72.6 32-15 CB TESLA MODEL X(Fr) 1 1,852 02300903821CB
20x9J F3 22 -34 5 120 72.6 32-15 AB BMW M2 Competition(F87)Fr,M4 Coupe(F82)Fr., LEXUS LC500h(GWZ100)Fr. 1,852 02300902221AB
20x9J F3 22 -34 5 120 72.6 32-15 CB BMW M2 Competition(F87)Fr,M4 Coupe(F82)Fr., LEXUS LC500h(GWZ100)Fr. 1,852 02300902221CB
20x9J F1 55 -31 5 130 71.6 32-R14 AB PORSCHE Cayman GT4(981DBX)Fr. 4.5 1,852 02300905539AB
20x9J F1 55 -31 5 130 71.6 32-R14 CB PORSCHE Cayman GT4(981DBX)Fr. 4.5 1,852 02300905539CB
20x9J F2 45 -31 5 130 71.6 32-R14 AB PORSCHE Cayman GT4(981DBX)Fr.* 1 1,852 02300904539AB
20x9J F2 45 -31 5 130 71.6 32-R14 CB PORSCHE Cayman GT4(981DBX)Fr.* 1 1,852 02300904539CB
20×9.5J F3 25 -37 5 112 66.6 32-15 AB BMW Z4 M40i(G29)Fr,330i(G20)Fr,M4 Competition(G82)Fr. 1,852 02300952520AB
20×9.5J F3 25 -37 5 112 66.6 32-15 CB BMW Z4 M40i(G29)Fr,330i(G20)Fr,M4 Competition(G82)Fr. 1,852 02300952520CB
20×9.5J F2 38 -44 5 114.3 73.1 32-15 AB ▽▼θη■⊿◎#△▲□αβγ○●Ω★◇◆〓 1 1,852 02300953895AB
20×9.5J F2 38 -44 5 114.3 73.1 32-15 CB ▽▼θη■⊿◎#△▲□αβγ○●Ω★◇◆〓 1 1,852 02300953895CB
20×9.5J F3 29 -33 5 114.3 73.1 32-15 AB η⊿◎●◇◆〓 1,852 02300952995AB
20×9.5J F3 29 -33 5 114.3 73.1 32-15 CB η⊿◎●◇◆〓 1,852 02300952995CB
20×9.5J F4 20 -42 5 120 72.6 32-15 AB BMW M2 Competition(F87)Fr,M4 Coupe(F82)Fr. 1,852 02300952021AB
20×9.5J F4 20 -42 5 120 72.6 32-15 CB BMW M2 Competition(F87)Fr,M4 Coupe(F82)Fr. 1,852 02300952021CB
20x10J F4 15 -43 5 112 66.6 32-15 AB BMW M4 Competition(G82)Fr., PORSCHE Macan S(95BCTM(A))Rr. 1,852 02300101520AB
20x10J F4 15 -43 5 112 66.6 32-15 CB BMW M4 Competition(G82)Fr., PORSCHE Macan S(95BCTM(A))Rr. 1,852 02300101520CB
20x10J F4 30 -28 5 114.3 73.1 32-15 AB η⊿◎●◇◆〓 1,852 02300103095AB
20x10J F4 30 -28 5 114.3 73.1 32-15 CB η⊿◎●◇◆〓 1,852 02300103095CB
20x10J F3 38 -30 5 120 72.6 32-15 AB TESLA MODEL X(Rr) 1,852 02300103821AB
20x10J F3 38 -30 5 120 72.6 32-15 CB TESLA MODEL X(Rr) 1,852 02300103821CB
20x10J F4 30 -28 5 120 72.6 32-15 AB TESLA MODEL X(5YJXDCE), BMW X6(F16) 1,852 02300103021AB
20x10J F4 30 -28 5 120 72.6 32-15 CB TESLA MODEL X(5YJXDCE), BMW X6(F16) 1,852 02300103021CB
20x10J F3 40 -28 5 130 71.6 32-R14 AB PORSCHE 718Cayman(982H1)Rr.,BOXSTER(981)Rr. 1,852 02300104039AB
20x10J F3 40 -28 5 130 71.6 32-R14 CB PORSCHE 718Cayman(982H1)Rr.,BOXSTER(981)Rr. 1,852 02300104039CB
20×10.5J F4 32 -33 5 112 66.6 32-15 AB BMW Z4 M40i(G29)Rr. 1,852 02300053220AB
20×10.5J F4 32 -33 5 112 66.6 32-15 CB BMW Z4 M40i(G29)Rr. 1,852 02300053220CB
20×10.5J F5 15 -33 5 112 66.6 32-15 AB BMW M4 Competition(G82)Rr. 1,852 02300051520AB
20×10.5J F5 15 -33 5 112 66.6 32-15 CB BMW M4 Competition(G82)Rr. 1,852 02300051520CB
20×10.5J F4 22 -33 5 114.3 73.1 32-15 AB ▽▼θη■⊿◎#△▲□αβγ○●Ω★◇◆〓 1,852 02300052295AB
20×10.5J F4 22 -33 5 114.3 73.1 32-15 CB ▽▼θη■⊿◎#△▲□αβγ○●Ω★◇◆〓 1,852 02300052295CB
20×10.5J F4 34 -31 5 120 72.6 32-15 AB BMW M2 Competition(F87)Rr,M4 Coupe(F82)Rr. 1,852 02300053421AB
20×10.5J F4 34 -31 5 120 72.6 32-15 CB BMW M2 Competition(F87)Rr,M4 Coupe(F82)Rr. 1,852 02300053421CB
20×10.5J F4 22 -43 5 120 72.6 32-15 AB LEXUS LC500h(GWZ100)Rr. 1,852 02300052221AB
20×10.5J F4 22 -43 5 120 72.6 32-15 CB LEXUS LC500h(GWZ100)Rr. 1,852 02300052221CB
20x11J F5 15 -39 5 112 66.6 32-15 AB BMW M4 Competition(G82)Rr. , PORSCHE Macan S(95BCTM(A))Rr. 1,852 02300111520AB
20x11J F5 15 -39 5 112 66.6 32-15 CB BMW M4 Competition(G82)Rr. , PORSCHE Macan S(95BCTM(A))Rr. 1,852 02300111520CB
20x11J F5 28 -26 5 114.3 73.1 32-15 AB ▽▼θη■⊿◎▲□αβ●★◇◆〓 1,852 02300112895AB
20x11J F5 28 -26 5 114.3 73.1 32-15 CB ▽▼θη■⊿◎▲□αβ●★◇◆〓 1,852 02300112895CB
20x11J F5 10 -44 5 114.3 73.1 32-15 AB ▽▼θη■⊿◎#△▲□αβγ○●Ω☆★Σ◇◆〓 1,852 02300111095AB
20x11J F5 10 -44 5 114.3 73.1 32-15 CB ▽▼θη■⊿◎#△▲□αβγ○●Ω☆★Σ◇◆〓 1,852 02300111095CB
20x11J F2 70 -31 5 130 71.6 32-R14 AB PORSCHE 911CarreraS(991)Rr. 1 1,852 02300117039AB
20x11J F2 70 -31 5 130 71.6 32-R14 CB PORSCHE 911CarreraS(991)Rr. 1 1,852 02300117039CB
20x11J F3 50 -31 5 130 71.6 32-R14 AB PORSCHE Cayman GT4(981DBX)Rr. 1,852 02300115039AB
20x11J F3 50 -31 5 130 71.6 32-R14 CB PORSCHE Cayman GT4(981DBX)Rr. 1,852 02300115039CB
20x12J F4 48 -36 5 114.3 73.1 32-15 AB θη■⊿◎▲□αβ●★◇◆〓 1,852 02300124895AB
20x12J F4 48 -36 5 114.3 73.1 32-15 CB θη■⊿◎▲□αβ●★◇◆〓 1,852 02300124895CB
20x12J F5 20 -44 5 114.3 73.1 32-15 AB ▽▼θη■⊿◎#△▲□αβγ○●Ω☆★Σ◇◆〓 1,852 02300122095AB
20x12J F5 20 -44 5 114.3 73.1 32-15 CB ▽▼θη■⊿◎#△▲□αβγ○●Ω☆★Σ◇◆〓 1,852 02300122095CB
20x12J F3 58 -36 5 130 71.6 32-R14 AB PORSCHE 911CarreraS(991)Rr.* 1,852 02300125839AB
20x12J F3 58 -36 5 130 71.6 32-R14 CB PORSCHE 911CarreraS(991)Rr.* 1,852 02300125839CB

Caution
※PORSCHE SIZE: can be used with OEM nuts and bolts, all sizes have 14mm nut/bolt hole (Drill φ32-φ15), all sizes are Porsche hubcentric.
※Hub Clearance listed with VR Center Cap Model-01 Low installed. High-type Center Caps add an extra 11mm clearance.
※ * :Tuner size. (Tire and or wheel may interfere or protrude from the body/fender on normal based vehicles.

[ CALIPER CLEARANCE ]
▼: IMPREZA (GDB 4POT)
▽: IMPREZA (GDB & GRB 4POT)
Θ: WRX STI (4POT)
η: WRX STI (6POT)
§:GR 86/BRZ Brenbo (ZN8/ZD8)
■: IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿: IS-F
◎: RC-F
#: SILVIA (S15)
△: SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲: SKYLINE (R34 GT-R)
□: SKYLINE (CKV36, HV37, RV37/400R)
α: SKYLINE (CKV36, HV37), FUGA(Y51)
β: SKYLINE (HV37)
γ: SKYLINE (CPV35)
○: FAIRLADY Z (Z33, Z34, RZ34 ※except NISMO)
●: FAIRLADY Z (Z34, RZ34 ※except NISMO)
Ω: FAIRLADY Z (Z33)
☆: LANCER EVO.(VII~IX, X)
★: LANCER EVO.X
∑: LANCER EVO.(VII~IX)
◆: GT-R (R35/φ380 rotor)
◇: GT-R (R35/φ380, φ390 rotor)
〓: GR YARIS (RZ)
Ψ: ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.

Features

A.S.T. (Advanced Surface Technology)

A revolutionary new technology that fuses the texture of finely polished three-dimensional surfaces with the sharp edges created by precision machining. By contrasting the two distinct finishes—the smooth wheel surface and the machined areas—it delivers a unique and commanding presence unlike anything else. This next-generation innovation embodies both advanced design and performance. RAYS’ proprietary manufacturing method proves its overwhelming advantage through this cutting-edge technology.(Patent pending)

The Evolved “S-plus”

S-plus stands for “Sport Plus.” To further enhance the performance of the base model, the TE37SAGA, every detail—from the continuity of fine lines to structural refinements—has been meticulously reengineered. The result is even greater strength and rigidity. Its true value lies in its ability to handle today’s latest heavyweight machines and ultra high-grip tires with confidence. That is the essence of “S-plus.”

Racing Concave Design

At VOLK RACING, every line has purpose—“Design with reason, no meaningless lines” is a core principle. The TE37SAGA S-plus is offered in a wide range of sizes, rim widths, and offsets, and to meet these diverse demands while accommodating modern brake systems, the unique face design known as Racing Concave was born. This fusion of form and function is the very identity of the TE37SAGA S-plus.
