TE37 SAGA S-PLUS 30TH ANNIVERSARY MACHINING
What’s engraved is not 30 years, but the will to evolve. TE37 30th Anniversary Model
Thirty years since its birth.
The TE37 has consistently pursued the ideal of a sports wheel—lightweight yet highly rigid—earning an unshakable position across countless street and circuit scenes.
The “37” in its name comes from the initials of Touring Evolution, and from its approximately 3.7kg weight—an astonishing figure for a 15-inch wheel at the time.
True to its name, the TE37 has, from the very beginning, continued its journey as a lightweight forged wheel that never stops evolving.
As time moved forward and high-powered, heavier 4WD and turbo sports cars became the standard, the TE37 was demanded to achieve even greater strength and rigidity.
This led to the fully redesigned TE37 SAGA, and further refinement of its philosophy in
the TE37 SAGA S-plus.
The 30th Anniversary Model is based on this TE37 SAGA S-plus, carrying forward the unchanging core philosophy of the TE37 while embodying an homage to the original, first-generation model. By layering iconic spoke decals and color schemes from the past onto a modern TE37 that meets the latest strength standards and safety margins, this model transcends mere nostalgia, emerging as an anniversary model that exists firmly in the present.
This wheel was not created simply to celebrate 30 years. It stands as a statement that VOLK RACING will continue to place performance above all else in the era to come.
That is the TE37 30th Anniversary Model.
Variation

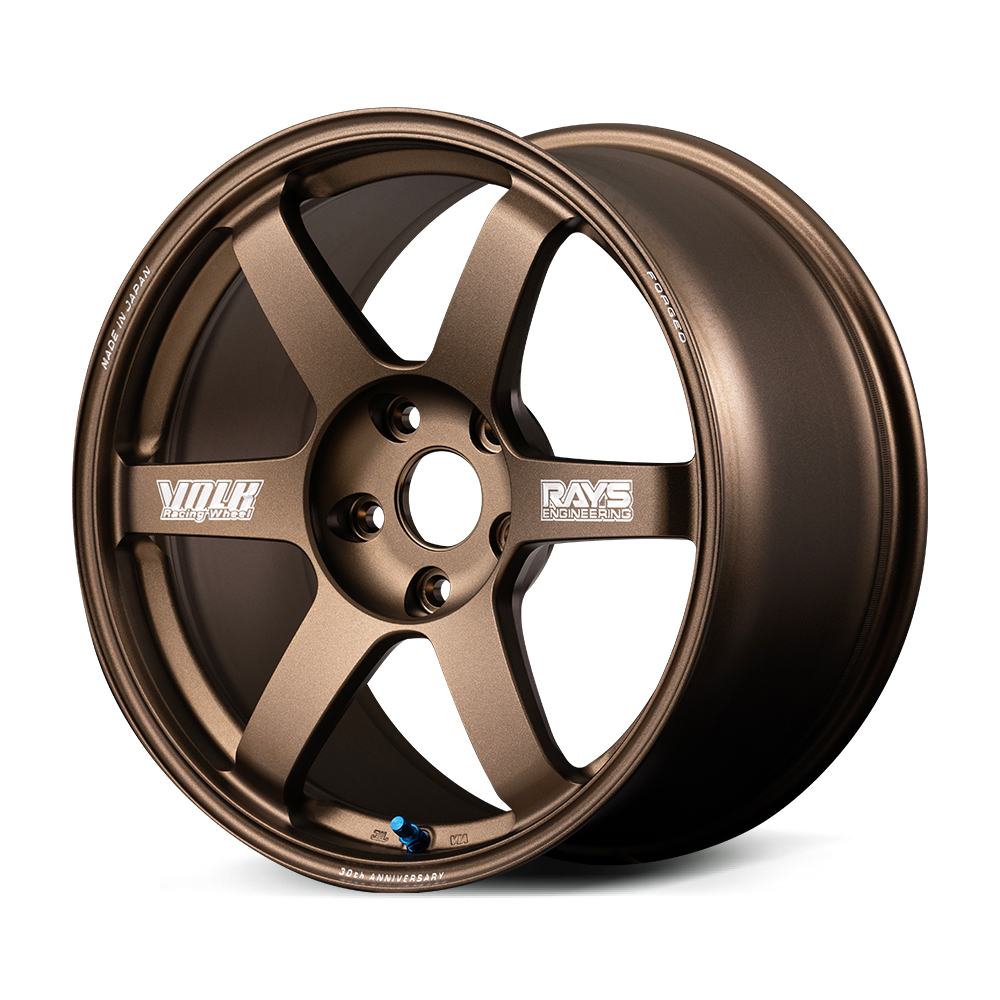

Bronze Almite (BR) 18x9.5J +45
White (WH) 18x9.5J +45
Size Chart
| SIZE | FACE | INSET | Hub | HOLE | P.C.D. | HUB | DRILL | COLOR | CALIPER | DISK | LOAD | LOAD | CODE |
| Clearance | BORE | (φ) | CLEARANCE | PROTRUSION | (kg) | (lbs) | |||||||
| (mm) | (φ) | (mm) | |||||||||||
| 17x7J | F1 | 45 | -24 | 4 | 100 | 65 | 29-15 | WH | 3.4 | 530 | 1,168 | 02407704592WH | |
| 17x7J | F1 | 45 | -24 | 4 | 100 | 65 | 29-15 | BR | 3.4 | 530 | 1,168 | 02407704592BR | |
| 17×7.5J | F1 | 38 | -31 | 4 | 100 | 65 | 29-15 | WH | ψ | 3.4 | 530 | 1,168 | 02407753892WH |
| 17×7.5J | F1 | 38 | -31 | 4 | 100 | 65 | 29-15 | BR | ψ | 3.4 | 530 | 1,168 | 02407753892BR |
| 17×7.5J | F1 | 48 | -28 | 5 | 114.3 | 73.1 | 32-15 | WH | 3.4 | 700 | 1,543 | 02407754895WH | |
| 17×7.5J | F1 | 48 | -28 | 5 | 114.3 | 73.1 | 32-15 | BR | 3.4 | 700 | 1,543 | 02407754895BR | |
| 17x8J | F2 | 38 | -27 | 5 | 114.3 | 73.1 | 32-15 | WH | ▽Θ＃▲ | 700 | 1,543 | 02407803895WH | |
| 17x8J | F2 | 38 | -27 | 5 | 114.3 | 73.1 | 32-15 | BR | ▽Θ＃▲ | 700 | 1,543 | 02407803895BR | |
| 17x9J | F4 | 22 | -31 | 5 | 114.3 | 73.1 | 32-15 | WH | ▽Θ＃▲γΩ | 700 | 1,543 | 02407902295WH | |
| 17x9J | F4 | 22 | -31 | 5 | 114.3 | 73.1 | 32-15 | BR | ▽Θ＃▲γΩ | 700 | 1,543 | 02407902295BR | |
| 18x8J | F1 | 45 | -28 | 5 | 100 | 65 | 29-15 | WH | ▼§ | 1.7 | 700 | 1,543 | 02408804596WH |
| 18x8J | F1 | 45 | -28 | 5 | 100 | 65 | 29-15 | BR | ▼§ | 1.7 | 700 | 1,543 | 02408804596BR |
| 18x8J | F1 | 45 | -28 | 5 | 114.3 | 73.1 | 32-15 | WH | Θη⊿〓 | 1.7 | 700 | 1,543 | 02408804595WH |
| 18x8J | F1 | 45 | -28 | 5 | 114.3 | 73.1 | 32-15 | BR | Θη⊿〓 | 1.7 | 700 | 1,543 | 02408804595BR |
| 18×8.5J | F2 | 45 | -21 | 5 | 100 | 65 | 29-15 | WH | 700 | 1,543 | 02408854596WH | ||
| 18×8.5J | F2 | 45 | -21 | 5 | 100 | 65 | 29-15 | BR | 700 | 1,543 | 02408854596BR | ||
| 18×8.5J | F2 | 42 | -24 | 5 | 112 | 66.6 | 32-15 | WH | AUDI TT(8J) | 700 | 1,543 | 02408854220WH | |
| 18×8.5J | F2 | 42 | -24 | 5 | 112 | 66.6 | 32-15 | BR | AUDI TT(8J) | 700 | 1,543 | 02408854220BR | |
| 18×8.5J | F2 | 42 | -24 | 5 | 114.3 | 73.1 | 32-15 | WH | Θη■⊿〓 | 700 | 1,543 | 02408854295WH | |
| 18×8.5J | F2 | 42 | -24 | 5 | 114.3 | 73.1 | 32-15 | BR | Θη■⊿〓 | 700 | 1,543 | 02408854295BR | |
| 18×8.5J | F2 | 35 | -31 | 5 | 114.3 | 73.1 | 32-15 | WH | ▽Θη■⊿＃△○★〓 | 700 | 1,543 | 02408853595WH | |
| 18×8.5J | F2 | 35 | -31 | 5 | 114.3 | 73.1 | 32-15 | BR | ▽Θη■⊿＃△○★〓 | 700 | 1,543 | 02408853595BR | |
| 18×9.5J | F3 | 45 | -21 | 5 | 114.3 | 73.1 | 32-15 | WH | Θη■⊿〓 | 700 | 1,543 | 02408954595WH | |
| 18×9.5J | F3 | 45 | -21 | 5 | 114.3 | 73.1 | 32-15 | BR | Θη■⊿〓 | 700 | 1,543 | 02408954595BR | |
| 18×9.5J | F3 | 38 | -28 | 5 | 114.3 | 73.1 | 32-15 | WH | ▽Θη■⊿◎＃△○★◆〓 | 700 | 1,543 | 02408953895WH | |
| 18×9.5J | F3 | 38 | -28 | 5 | 114.3 | 73.1 | 32-15 | BR | ▽Θη■⊿◎＃△○★◆〓 | 700 | 1,543 | 02408953895BR | |
| 18×9.5J | F4 | 22 | -24 | 5 | 114.3 | 73.1 | 32-15 | WH | ▽Θη■⊿◎＃□▲●★◇〓 | 700 | 1,543 | 02408952295WH | |
| 18×9.5J | F4 | 22 | -24 | 5 | 114.3 | 73.1 | 32-15 | BR | ▽Θη■⊿◎＃□▲●★◇〓 | 700 | 1,543 | 02408952295BR | |
| 18×9.5J | F3 | 45 | -21 | 5 | 120 | 72.6 | 32-15 | WH | HONDA CIVIC TYPE R(FK8,FL5) | 700 | 1,543 | 02408954521WH | |
| 18×9.5J | F3 | 45 | -21 | 5 | 120 | 72.6 | 32-15 | BR | HONDA CIVIC TYPE R(FK8,FL5) | 700 | 1,543 | 02408954521BR | |
| 18×9.5J | F4 | 20 | -26 | 5 | 120 | 72.6 | 32-15 | WH | BMW M2 Coupe(F87)Fr,M4 Coupe(F82)Fr,M3(E92) | 700 | 1,543 | 02408952021WH | |
| 18×9.5J | F4 | 20 | -26 | 5 | 120 | 72.6 | 32-15 | BR | BMW M2 Coupe(F87)Fr,M4 Coupe(F82)Fr,M3(E92) | 700 | 1,543 | 02408952021BR | |
| 18x10J | F4 | 35 | -23 | 5 | 114.3 | 73.1 | 32-15 | WH | η■⊿◎□●◆〓 | 700 | 1,543 | 02408103595WH | |
| 18x10J | F4 | 35 | -23 | 5 | 114.3 | 73.1 | 32-15 | BR | η■⊿◎□●◆〓 | 700 | 1,543 | 02408103595BR | |
| 18x10J | F4 | 40 | -24 | 5 | 120 | 72.6 | 32-15 | WH | HONDA CIVIC TYPE R(FK8,FL5) | 700 | 1,543 | 02408104021WH | |
| 18x10J | F4 | 40 | -24 | 5 | 120 | 72.6 | 32-15 | BR | HONDA CIVIC TYPE R(FK8,FL5) | 700 | 1,543 | 02408104021BR | |
| 18×10.5J | F4 | 15 | -44 | 5 | 114.3 | 73.1 | 32-15 | WH | ▽Θη■⊿◎＃△○☆◇〓 | 700 | 1,543 | 02408051595WH | |
| 18×10.5J | F4 | 15 | -44 | 5 | 114.3 | 73.1 | 32-15 | BR | ▽Θη■⊿◎＃△○☆◇〓 | 700 | 1,543 | 02408051595BR | |
| 18×10.5J | F4 | 30 | -29 | 5 | 120 | 72.6 | 32-15 | WH | BMW M2 Coupe(F87)Rr,M4 Coupe(F82)Rr,M3(E92)Rr. | 700 | 1,543 | 02408053021WH | |
| 18×10.5J | F4 | 30 | -29 | 5 | 120 | 72.6 | 32-15 | BR | BMW M2 Coupe(F87)Rr,M4 Coupe(F82)Rr,M3(E92)Rr. | 700 | 1,543 | 02408053021BR |
Caution
※ * ：Tuner size. (Tire and or wheel may interfere or protrude from the body/fender on normal based vehicles.
[ CALIPER CLEARANCE ]
▼： IMPREZA (GDB 4POT)
▽： IMPREZA (GDB & GRB 4POT)
Θ： WRX STI (4POT)
η： WRX STI (6POT)
§：GR 86/BRZ Brenbo (ZN8/ZD8)
■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿： IS-F
◎： RC-F
＃： SILVIA (S15)
△： SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲： SKYLINE (R34 GT-R)
□： SKYLINE (CKV36, HV37, RV37/400R)
α： SKYLINE (CKV36, HV37), FUGA(Y51)
β： SKYLINE (HV37)
γ： SKYLINE (CPV35)
○： FAIRLADY Z (Z33, Z34, RZ34 ※except NISMO)
●： FAIRLADY Z (Z34, RZ34 ※except NISMO)
Ω： FAIRLADY Z (Z33)
☆： LANCER EVO.(VII～IX, X)
★： LANCER EVO.X
∑： LANCER EVO.(VII～IX)
◆： GT-R (R35/φ380 rotor)
◇： GT-R (R35/φ380, φ390 rotor)
〓： GR YARIS (RZ)
Ψ： ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
Features

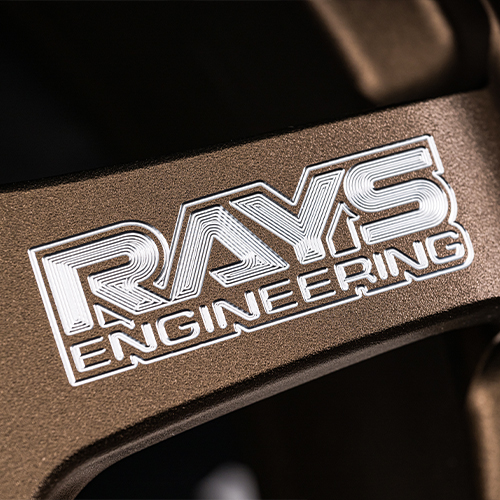

Spoke Machining
A special machined logo that engraves RAYS 30 years of challenge and evolution. The original TE37 logo, identical to that used on the first-generation model, is applied to the spokes. Through precise machining, it expresses an uncompromising manufacturing spirit and the philosophy of “the lightest and the strongest.”
Spoke Machining
A special machined logo that engraves RAYS 30 years of challenge and evolution. The original TE37 logo, identical to that used on the first-generation model, is applied to the spokes. Through precise machining, it expresses an uncompromising manufacturing spirit and the philosophy of “the lightest and the strongest.”
30th Machined Logo
The wording “30th ANNIVERSARY” is machined into the flange area. Subtle, yet marking a special milestone at the feet. The valve positioned above the machined area adopts the same blue color used on the original TE37.
30th Common Limited Sticker
A carbon-style box sticker created to commemorate the 30th anniversary. Featuring the “30th Anniversary” logo in a special specification, this sticker is included with all items in the 30th Anniversary series.
