TE37 GRAVEL III
The third coming of the legendary gravel wheel
The TE37 GRAVEL has long been supported under the TE37 series as a specialized product for rally and dirt trial racing. Now, it has evolved into the GRAVEL III to match the base TE37 being upgraded to TE37SAGA S-PLUS . We minimized the mass increases as much as possible while strengthening the center area, outer rim and inner rim. We achieved high strength and stiffness for traveling over hard gravel roads while retaining the lightweight attributes realized by forging.
※COMPETITION MODEL
Size: 15inch

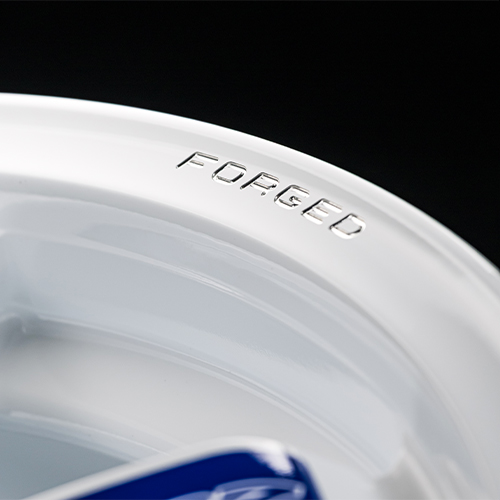

Construction Method: Forged 1pc. Wheel, Knurling finish
Safety Standards: JWL+R spec 2
Color: Dash White (DW), Diamond Dark Gunmetal (MM)
Included: Spoke Sticker
※Optional Center Caps cannot be fitted with this model
Variations

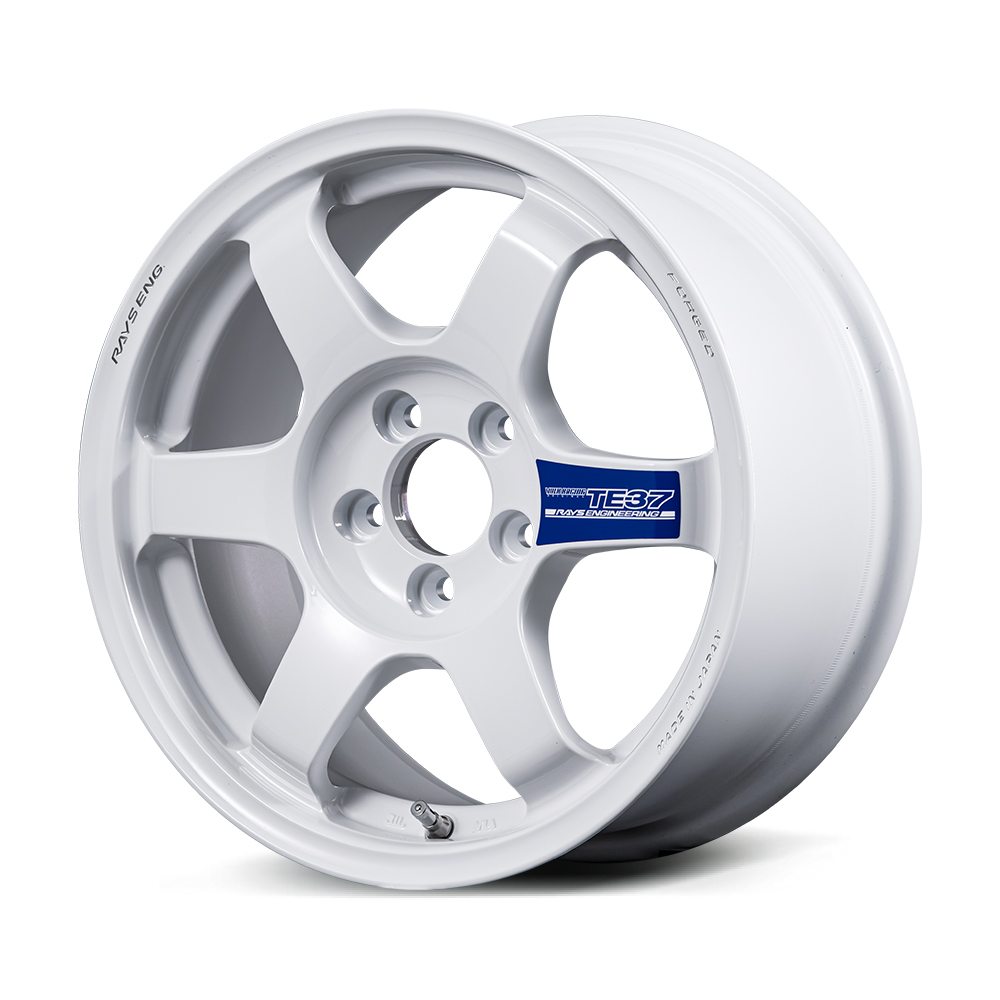

Dash White (DW)

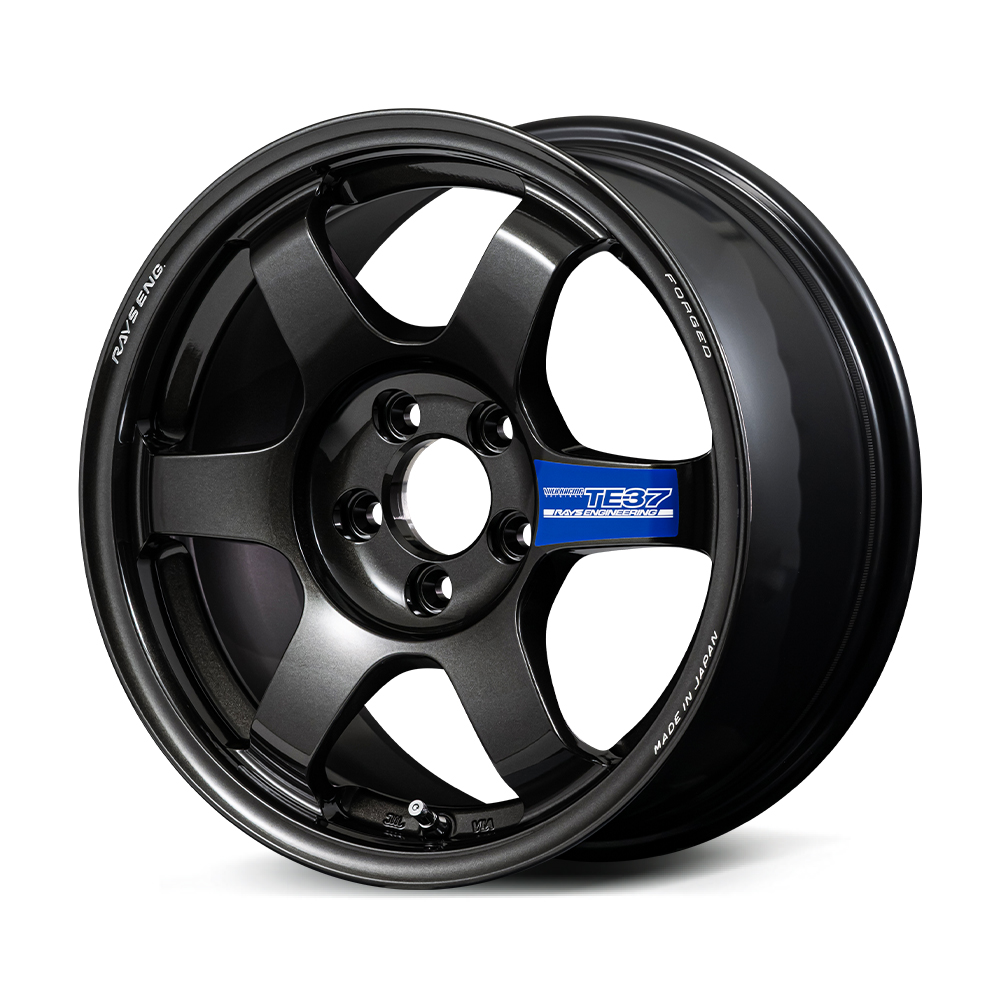

Diamond Dark Gunmetal (MM)
Size Chart
| SIZE | FACE | INSET | HOLE | P.C.D. | HUB | DRILL | COLOR | CALIPER | LOAD | LOAD | CODE |
| BORE | (φ) | CLEARANCE | (kg) | (lbs) | |||||||
| (φ) | |||||||||||
| 15×6.5J | F2 | 40 | 5 | 114.3 | 73.1 | 32-13 | MM | SWIFT SPORTS(ZC33S,ZC32S) | 690 | 1,521 | 02355654005MM |
| 15×6.5J | F2 | 40 | 5 | 114.3 | 73.1 | 32-13 | DW | SWIFT SPORTS(ZC33S,ZC32S) | 690 | 1,521 | 02355654005DW |
| 15x7J | F1 | 35 | 5 | 114.3 | 73.1 | 32-13 | MM | LANCER EVOLUTION,GR YARIS RC | 690 | 1,521 | 02355703505MM |
| 15x7J | F1 | 35 | 5 | 114.3 | 73.1 | 32-13 | DW | LANCER EVOLUTION,GR YARIS RC | 690 | 1,521 | 02355703505DW |
| 15x7J | F2 | 40 | 5 | 100 | 65 | 29-13 | MM | GR86(ZN8),BRZ(ZD8) | 690 | 1,521 | 02355704006MM |
| 15x7J | F2 | 40 | 5 | 100 | 65 | 29-13 | DW | GR86(ZN8),BRZ(ZD8) | 690 | 1,521 | 02355704006DW |
| 15x7J | F1 | 35 | 5 | 100 | 65 | 29-13 | MM | 86(ZN6),BRZ(ZC6) | 690 | 1,521 | 02355703506MM |
| 15x7J | F1 | 35 | 5 | 100 | 65 | 29-13 | DW | 86(ZN6),BRZ(ZC6) | 690 | 1,521 | 02355703506DW |
Features

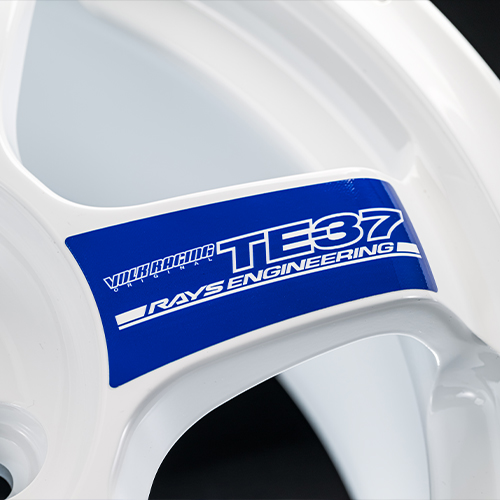

Spoke Sticker
