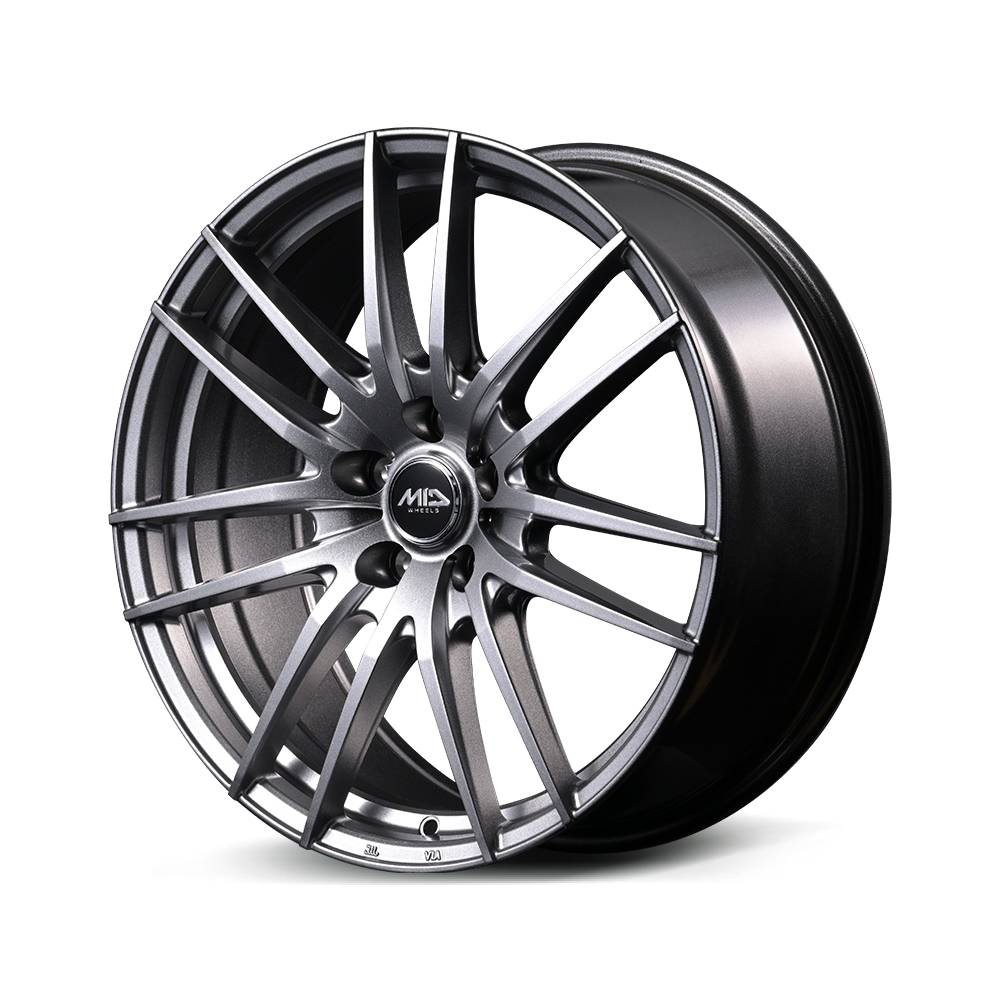

SQ14
Sharp & over 2x7 mesh
Rim over 2×7 mesh design.
Sharp & over design theme, the base layout is a well-balanced 2×7 spoke. The spoke length, which is the most distinctive feature, is sharply extended to the rim and placed on the flange to visually maximize the spokes. In addition, the spokes are placed on top of the flange to visually maximize the spoke length.
The spokes are placed on top of the flange to visually maximize the spoke length. The surface that receives the nut wheel is folded in one step to alleviate monotony, visually alleviate the disk-like appearance of the center part, and create a stylish overall impression of the wheel. The side ribs are composed of sharp lines and surfaces to casually reflect light and create a three-dimensional effect on the sharp spokes.
Variations
Metallic Gray
Size Chart
| SIZE | INSET | Hub | HOLE | P.C.D. | HUB | DRILL | COLOR | DISK | LOAD | CODE |
| Clearance | BORE | (φ) | PROTRUSION | (lbs) | ||||||
| (mm) | (φ) | (mm) | ||||||||
| 12×3.5J | 42 | -32 | 4H | 100 | φ67.1 | 32-13 | Metallic Gray | 10.7 | 1,058 | 4.56E+12 |
| 14×4.5J | 45 | -35 | 4H | 100 | φ67.1 | 32-13 | Metallic Gray | 6.9 | 1,102 | 4.56E+12 |
| 14×5.5J | 42 | -35 | 4H | 100 | φ67.1 | 32-13 | Metallic Gray | 7.7 | 1,102 | 4.56E+12 |
| 15×4.5J | 45 | -35 | 4H | 100 | φ67.1 | 32-13 | Metallic Gray | 10.7 | 1,102 | 4.56E+12 |
| 15×5.5J | 45 | -37 | 4H | 100 | φ67.1 | 32-13 | Metallic Gray | 8 | 1,102 | 4.56E+12 |
| 15×5.5J | 40 | -42 | 5H | 100 | φ67.1 | 32-13 | Metallic Gray | 8 | 1,113 | 4.56E+12 |
| 15x6J | 52 | -35 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 8.6 | 1,521 | 4.56E+12 |
| 15x6J | 45 | -42 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 8.6 | 1,521 | 4.56E+12 |
| 16x6J | 42 | -42 | 4H | 100 | φ67.1 | 32-13 | Metallic Gray | 2.2 | 1,168 | 4.56E+12 |
| 16×6.5J | 47 | -42 | 5H | 100 | φ67.1 | 32-13 | Metallic Gray | 4.7 | 1,168 | 4.56E+12 |
| 16×6.5J | 53 | -37 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 4.7 | 1,521 | 4.56E+12 |
| 16×6.5J | 48 | -42 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 4.7 | 1,521 | 4.56E+12 |
| 16×6.5J | 38 | -52 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 4.7 | 1,521 | 4.56E+12 |
| 17×6.5J | ★40 | -40 | 5H | 120 | φ60.1 | 38-23 | Metallic Gray | 2.8 | 1,587 | 4.56E+12 |
| 17x7J | 55 | -38 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 5.6 | 1,521 | 4.56E+12 |
| 17x7J | 48 | -45 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 5.6 | 1,521 | 4.56E+12 |
| 17x7J | 38 | -55 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 5.6 | 1,521 | 4.56E+12 |
| 18x7J | 50 | -42 | 5H | 114.3 | φ73.1 | 32-13 | Metallic Gray | 10.2 | 1,521 | 4.56E+12 |
| 18x7J | 40 | -52 | 5H | 114.3 | φ73.1 | 32-15 | Metallic Gray | 10.2 | 1,521 | 4.56E+12 |
| 18x8J | 42 | -45 | 5H | 114.3 | φ73.1 | 32-15 | Metallic Gray | 3.6 | 1,521 | 4.56E+12 |
| 19x7J | 45 | -45 | 5H | 114.3 | φ73.1 | 32-15 | Metallic Gray | 12.7 | 1,521 | 4.56E+12 |
| 19x8J | 42 | -45 | 5H | 114.3 | φ73.1 | 32-15 | Metallic Gray | 3.3 | 1,521 | 4.56E+12 |
