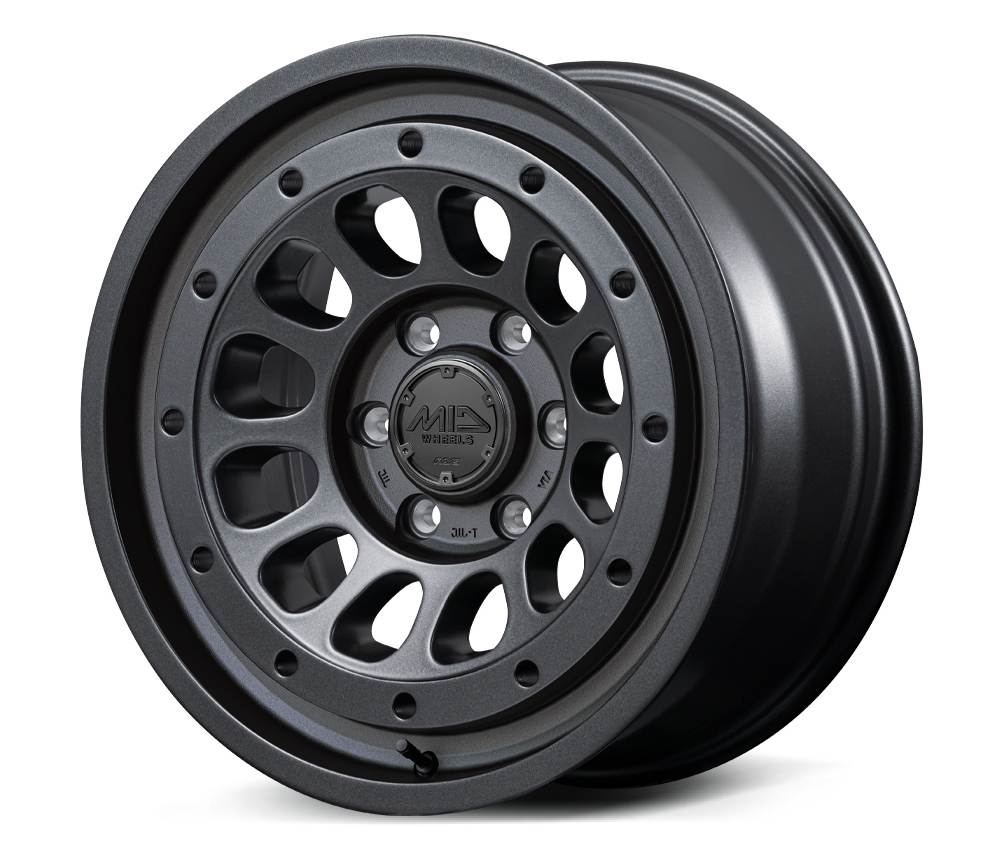

R12

Shaping Toughness. An Aggressive Stance — R12.

The R12 follows the design lineage of the H12.
While retaining a traditional off-road wheel face, it incorporates sculpted holes inspired by shotgun shells, emphasizing the recessed face and creating a powerful, three-dimensional form.
Instead of pierced spokes around the outer edge of the disk, small-diameter holes are applied to add individuality while conveying a sense of lightness.

Size: 18inch
Construction Method: Cast 1pc. Wheel
Safety Standards: JWL, JWL-T
Color: Barrel Black(BBK), Semigloss Smoke/Machined Face(SSM)
Included: Air Valve, Center Cap

Variations

Semigloss Smoke/Machined Face (SSM)

Barrel BK (BBK)

Size Chart

SIZE INSET Hub HOLE P.C.D. HUB DRILL COLOR LOAD LOAD CODE
Clearance BORE (φ) (kg) (lbs)
(mm) (φ)
18x9J 0 -60 6 139.7 106.1 33-15 BBK 955 2,105 Y27A8906D200BBKN
18x9J 0 -60 6 139.7 106.1 33-15 SSM 955 2,105 Y27A8906D200SSMN
18x9J 20 -40 6 139.7 106.1 33-15 BBK 955 2,105 Y27A8906D320BBKN
19x9J 20 -40 6 139.7 106.1 33-15 SSM 955 2,105 Y27A8906D320SSMN
