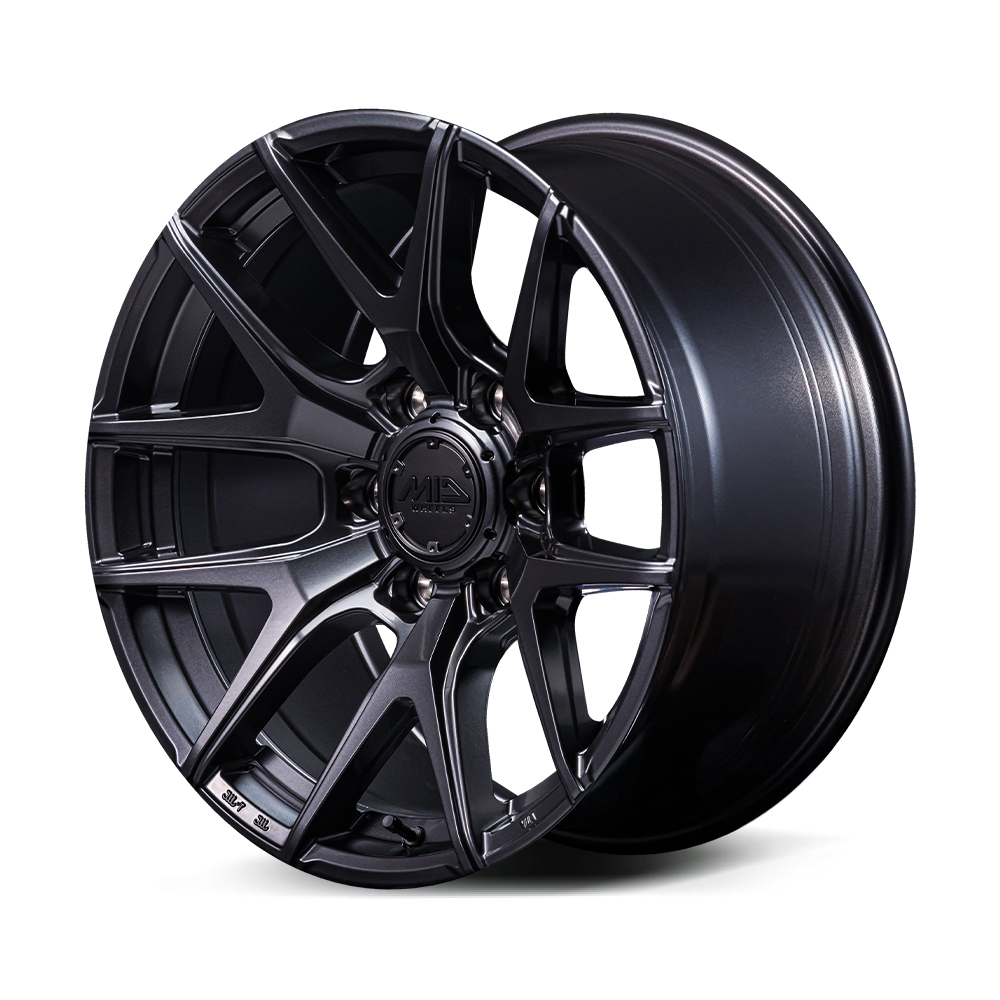

M62

6 crossed spokes specially designed for 6 holes

M62 is a 6-hole exclusive 6-cross spoke design. The main cross spokes are ruggedly arranged to create an American heavy-duty look.
The M62 is a combination of the main cross spokes, which are ruggedly placed to create an American heavy-duty look, and a gear-like detail design. The characteristic cross spokes are made up of straight lines and the spoke topsides are extended all the way to the rim end to create a large diameter design with a lot of momentum.
The tops of the spokes are designed to extend all the way to the rim end to give the appearance of a large diameter. In addition, the spoke side ribs are combined from the nut hole surface that is one step lower
The overall impression of the spokes is clear while visually showing a tough three-dimensional impression at the top and bottom. Powerful and dynamic
The silhouette of the spoke volume, yet lightweight, can be enjoyed both on and off the road. Rim flange and wells have carved edge detailing to express a rugged texture at the outer circumference. Gimmicks are placed throughout
The M62, which is woven with heavy-duty modeling and delicately crafted detailing, is a rugged 4×4 for both old and new.

Size: 17/18inch
Construction Method: Cast flow-formed 1-piece wheel
Safety Standards: JWL&JWL-T
Color: Barrel Black(BBK)
Included: Air Valve, Center Cap

Variations

Barrel Black (BBK) 17x8.5J

Barrel Black (BBK) 18x9J +10

Barrel Black (BBK) 18x8.0 +55

Size Chart

SIZE INSET Hub HOLE P.C.D. HUB DRILL COLOR LOAD CODE
Clearance BORE (φ) (lbs)
(mm) (φ)
17×8.5J 10 -46 6 139.7 106.1 33-15 BBK 2,500 D70C7856D310BBK0
17×8.5J 0 -56 6 139.7 106.1 33-15 BBK 2,500 D70C7856D200BBK0
18x9J 10 -46 6 139.7 106.1 33-15 BBK 2,500 D70C8906D310BBK0
18x9J 0 -56 6 139.7 106.1 33-15 BBK 2,500 D70C8906D200BBK0
