M29 STINGER
American Rugged Mesh Design
2×9 mesh design with a military rugged feel. 2×9 rugged mesh is installed on the M29 STINGER with the same bolt design on the outer perimeter that was inspired by the H12 armored car. The mesh disc part adds a sporty impression to the rugged and wild atmosphere, and matches a wide range of vehicles from nitro-powered main targets such as SUVs and full-scale off-road vehicles to urban off-road vehicles. The spoke intersections of the 2×9 mesh have large surfaces to appeal their strength. The concave cross section created by adding a clear sectional break expresses a detailed three-dimensional effect. The outer circumference has a special pierced bolt to emphasize the military feel and produce the originality of Nitro Power with impact. The colors available include Barrel Black, which is inspired by the texture of a gun, and Semigloss Black Clear, which has an army-like finish, as well as a new Hyper Silver/Machined Face color that shines like aluminum itself.
When combined with all-terrain tires, it creates the ultimate rugged mesh.
Made in China
Variations

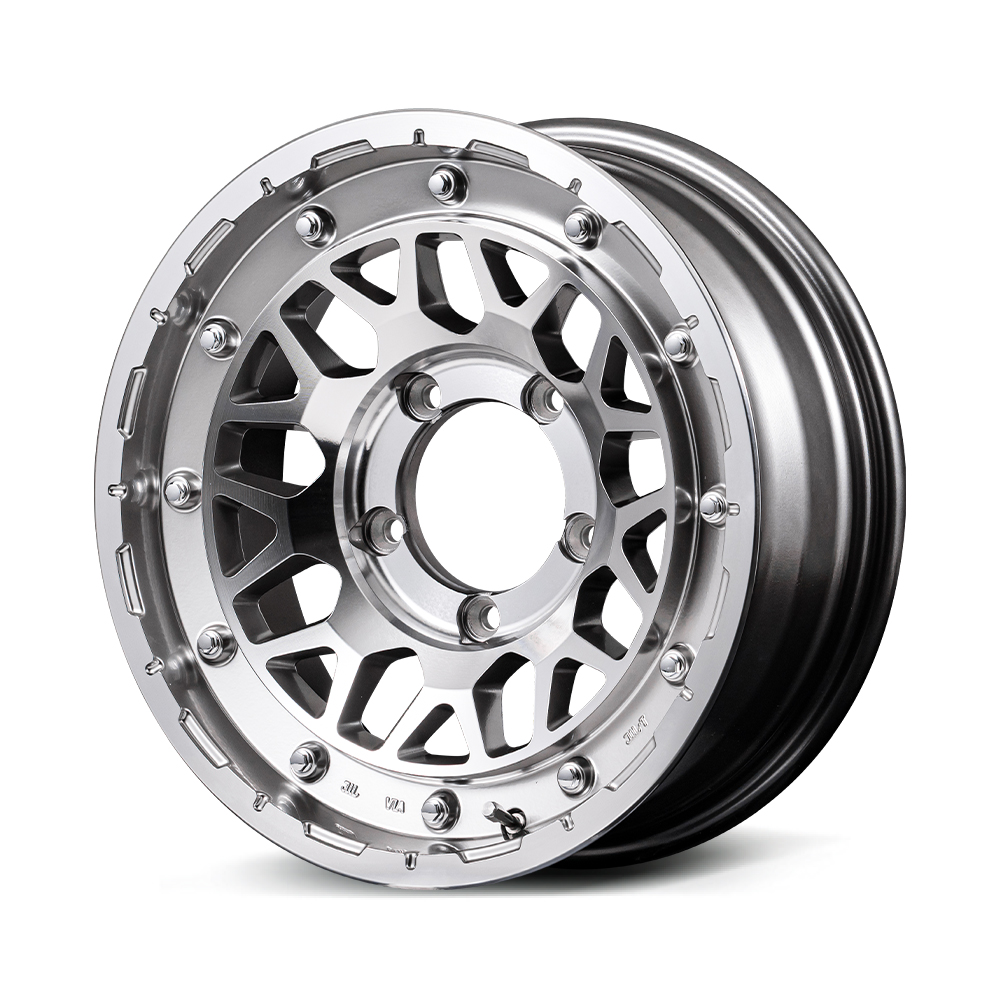

Hyper Silver / Machined Face (HSM)

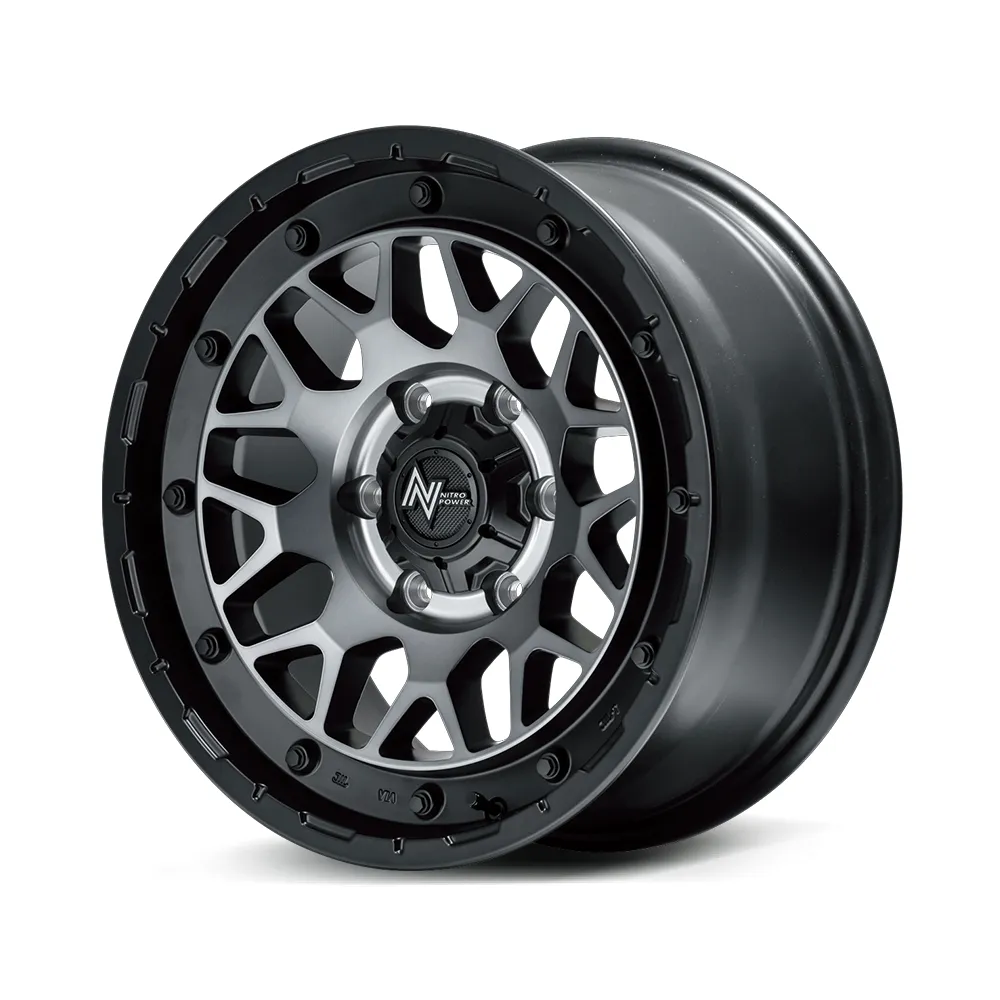

Semigloss Black Clear (SBC) 17x8.0J 6H

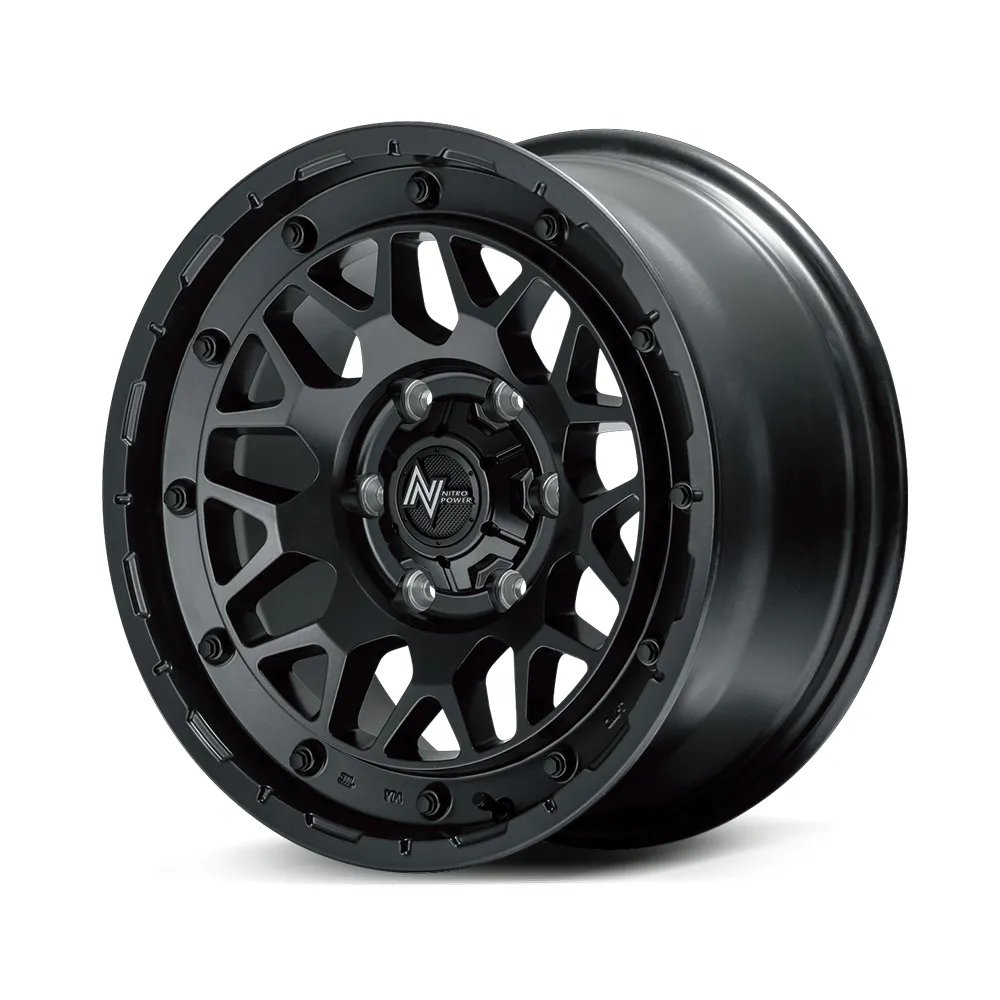

Barrel Black (BBK) 17x8.0J 6H
Size Chart
| SIZE | INSET | Hub | HOLE | P.C.D. | HUB | DRILL | COLOR | PRICE | DISK | LOAD | LOAD | CODE |
| Clearance | BORE | (φ) | PROTRUSION | (kg) | (lbs) | |||||||
| (mm) | (φ) | (mm) | ||||||||||
| 14×4.5J | 45 | -32 | 4 | 100 | 67.1 | 29-13 | BBK | ¥39,000 | 9.9 | 500 | 1,102 | X193445433450300 |
| 14×4.5J | 45 | -32 | 4 | 100 | 67.1 | 29-13 | SBC | ¥41,000 | 9.9 | 500 | 1,102 | X19344543345SB00 |
| 14×4.5J | 45 | -32 | 4 | 100 | 67.1 | 29-13 | HSM | ¥43,000 | 500 | 1,102 | X19344543345HSMN | |
| 15x5J | 48 | -32 | 4 | 100 | 67.1 | 29-13 | BBK | ¥41,000 | 9.9 | 500 | 1,102 | X193550433480300 |
| 15x5J | 48 | -32 | 4 | 100 | 67.1 | 29-13 | SBC | ¥43,000 | 9.9 | 500 | 1,102 | X19355043348SB00 |
| 15x5J | 48 | -32 | 4 | 100 | 67.1 | 29-13 | HSM | ¥45,000 | 500 | 1,102 | X19355043348HSMN | |
| 16×5.5J | 20 | 5 | 139.7 | 108.8 | 29-13 | BBK | ¥49,000 | 700 | 1,543 | X1936555D3200300 | ||
| 16×5.5J | 20 | 5 | 139.7 | 108.8 | 29-13 | HSM | ¥53,000 | 700 | 1,543 | X1936555D320HSMN | ||
| 16x6J | 40 | -34 | 5 | 100 | 67.1 | 29-13 | BBK | ¥50,000 | 7.2 | 540 | 1,190 | X193660533400300 |
| 16x6J | -5 | 5 | 139.7 | 108.8 | 29-13 | BBK | ¥50,000 | 700 | 1,543 | X1936605D1050300 | ||
| 16x6J | -5 | 5 | 139.7 | 108.8 | 29-13 | SBC | ¥52,000 | 700 | 1,543 | X1936605D105SB00 | ||
| 16x6J | -5 | 5 | 139.7 | 108.8 | 29-13 | HSM | ¥54,000 | 700 | 1,543 | X1936605D105HSMN | ||
| 16×6.5J | 38 | -39 | 6 | 139.7 | 106.1 | 29-13 | BBK | ¥51,000 | 955 | 2,105 | X1936656D3380300 | |
| 16×6.5J | 38 | -39 | 6 | 139.7 | 106.1 | 29-13 | SBC | ¥53,000 | 955 | 2,105 | X1936656D338SB00 | |
| 16×6.5J | 38 | -39 | 6 | 139.7 | 106.1 | 29-13 | HSM | ¥55,000 | 955 | 2,105 | X1936656D338HSMN | |
| 16x7J | 40 | -42 | 5 | 114.3 | 73.1 | 29-13 | BBK | ¥52,000 | 690 | 1,521 | X193670573400300 | |
| 16x7J | 40 | -42 | 5 | 114.3 | 73.1 | 29-13 | SBC | ¥54,000 | 690 | 1,521 | X19367057340SB00 | |
| 16x7J | 40 | -42 | 5 | 114.3 | 73.1 | 29-13 | HSM | ¥56,000 | 690 | 1,521 | X19367057340HSMN | |
| 17×6.5J | 38 | -39 | 6 | 139.7 | 106.1 | 29-13 | BBK | ¥59,000 | 955 | 2,105 | X1937656D3380300 | |
| 17x7J | 42 | -42 | 5 | 114.3 | 73.1 | 29-13 | BBK | ¥61,000 | 690 | 1,521 | X193770573420300 | |
| 17x7J | 42 | -42 | 5 | 114.3 | 73.1 | 29-13 | SBC | ¥63,000 | 690 | 1,521 | X19377057342SB00 | |
| 17x8J | 35 | -35 | 5 | 114.3 | 73.1 | 29-13 | BBK | ¥65,000 | 690 | 1,521 | X193780573350300 | |
| 17x8J | 35 | -35 | 5 | 114.3 | 73.1 | 29-13 | SBC | ¥67,000 | 690 | 1,521 | X19378057335SB00 | |
| 17x8J | 20 | -42 | 6 | 139.7 | 106.1 | 29-13 | BBK | ¥65,000 | 955 | 2,105 | X1937806D3200300 | |
| 18x7J | 40 | -43 | 5 | 114.3 | 73.1 | 29-13 | BBK | ¥70,000 | 690 | 1,521 | X193870573400300 | |
| 18x7J | 40 | -43 | 5 | 114.3 | 73.1 | 29-13 | SBC | ¥72,000 | 690 | 1,521 | X19387057340SB00 |
