57TR-X

Toughness and sportiness in one bold choice

The 57TR-X is the successor to the 57Trans-X—an off-road wheel with an even sportier presence. Built for true 4WDs, its delta-section spokes and extended form to the rim create a sharp, planted look. While retaining the core styling of the previous model, details have been refined and new color options introduced. The 57TR-X is a new expression of off-road sportiness at the wheel.

Variations

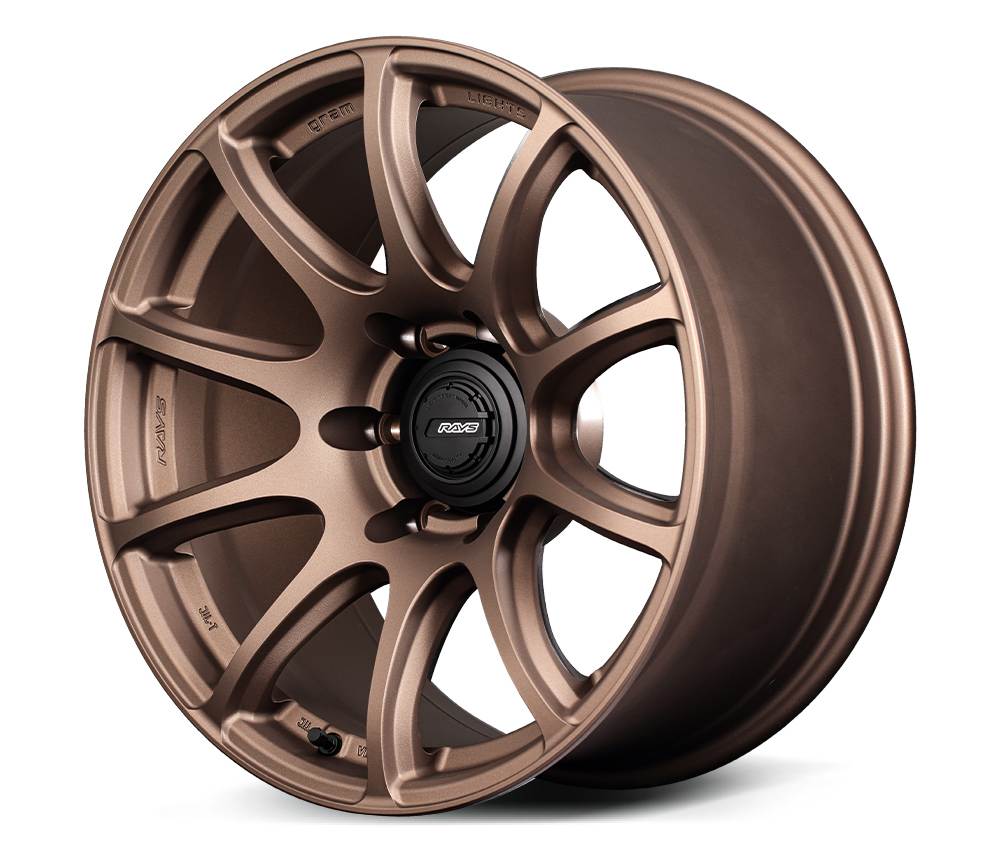

Dark Bronze (Z2)

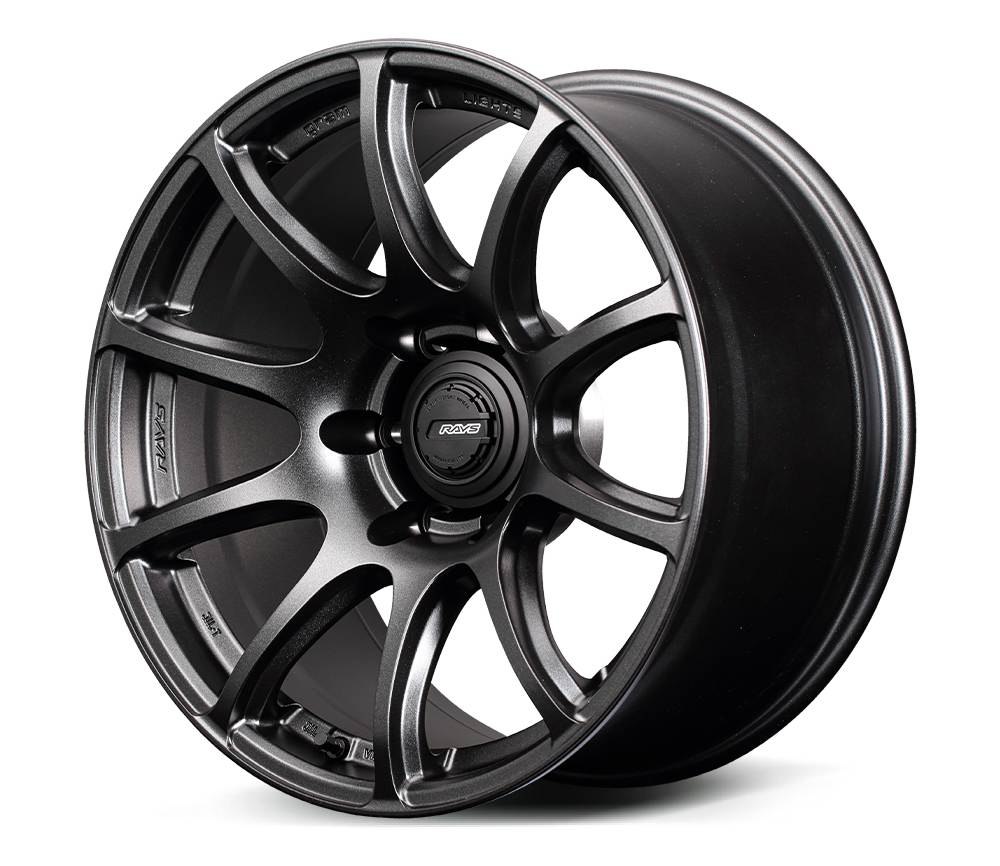

Semigloss Black (6YZ)

Size Chart

SIZE INSET Hub HOLE P.C.D. HUB DRILL COLOR CALIPER DISK LOAD CODE
Clearance BORE (φ) CLEARANCE PROTRUSION (lbs)
(mm) (φ) (mm)
18x9J 0 5 127 87 29-15 6YZ Wrangler(JK36L,JL20L)* 1.8 1,896 585389000816YZ
18x9J 0 5 127 87 29-15 Z2 Wrangler(JK36L,JL20L)* 1.8 1,896 58538900081Z2
18x9J 25 5 150 110.2 29-15 6YZ 1.8 1,962 585389025406YZ
18x9J 25 5 150 110.2 29-15 Z2 1.8 1,962 58538902540Z2
18x9J 0 5 150 110.2 29-15 6YZ LAND CRUISER 70(GDJ76W) 1.8 1,962 585389000406YZ
18x9J 0 5 150 110.2 29-15 Z2 LAND CRUISER 70(GDJ76W) 1.8 1,962 58538900040Z2
18x9J 25 -44 6 139.7 112 29-15 6YZ FJ CRUISER*,HILUX SURF(VZN215W)*,LAND CRUISER PRADO(VZAJ120W*.TRJ150W),LX570(URJ201W)* 1.8 2,105 585389025166YZ
18x9J 25 -44 6 139.7 112 29-15 Z2 FJ CRUISER*,HILUX SURF(VZN215W)*,LAND CRUISER PRADO(VZAJ120W*.TRJ150W),LX570(URJ201W)* 1.8 2,105 58538902516Z2
18x9J 0 6 135 112 29-15 6YZ 1.8 2,105 585389000176YZ
18x9J 0 6 135 112 29-15 Z2 1.8 2,105 58538900017Z2
18x9J 0 -44 6 139.7 112 29-15 6YZ LAND CRUISER 80(FZJ80 WIDE) 1.8 2,105 585389000166YZ
18x9J 0 -44 6 139.7 112 29-15 Z2 LAND CRUISER 80(FZJ80 WIDE) 1.8 2,105 58538900016Z2

Features

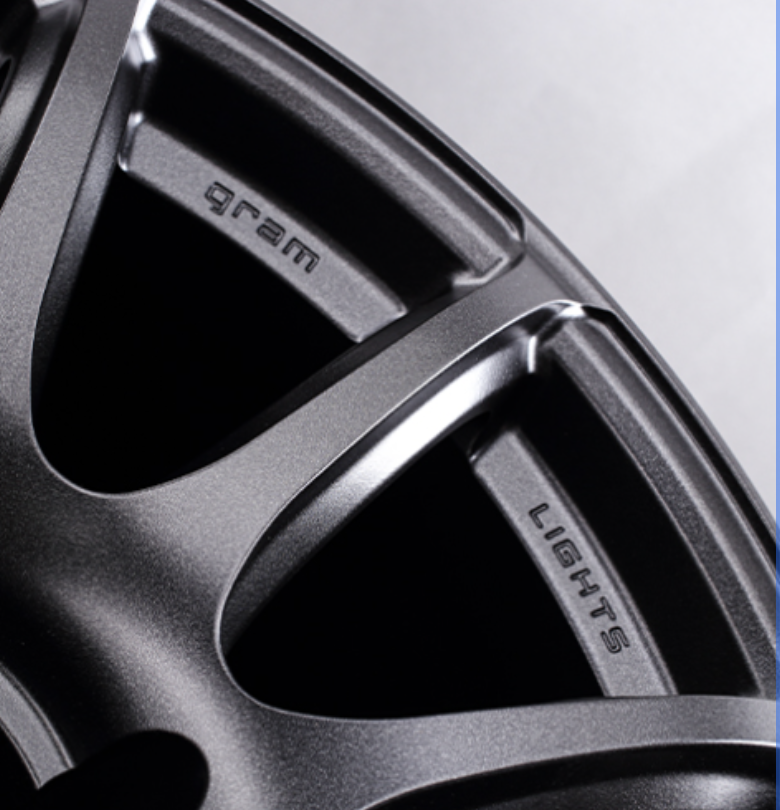

gramLIGHTS Logo

Rigid Delta Spokes

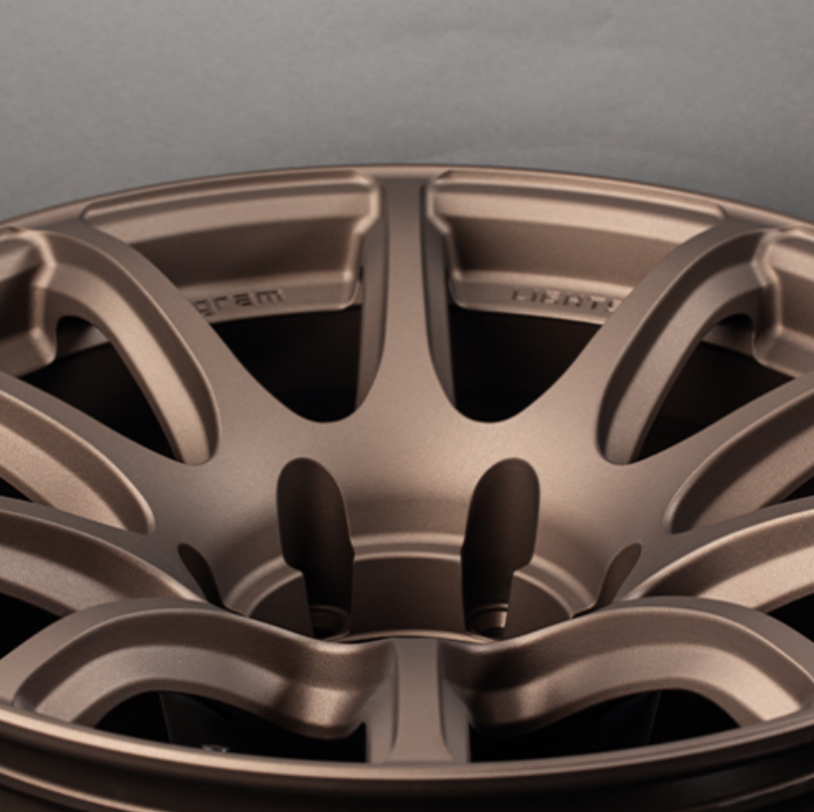

Deep Concave Design
