57TR
The refined performance and captivating design that embodies the thrill of driving
Based on extensive data obtained through rigorous driving tests, the 57TR’s spoke design has been completely re-engineered.
Its responsiveness has been sharpened to deliver exceptional agility, reacting instantly even to the most precise steering inputs. Even under the extreme loads of tarmac rally conditions, it maintains a firm grip on the road, providing a precise and linear steering feel that faithfully responds to the driver’s commands.
From everyday driving to spirited sports performance, it offers consistently sharp and direct handling that enhances driving pleasure. The color lineup features two finishes that bring the sense of speed cultivated in rally competition to the streets: Glass Black and Eternal Blue Pearl. Born from competition roots and crafted with high-rigidity, high-precision casting technology, the 57TR unites passion and performance in a single, finely honed form.

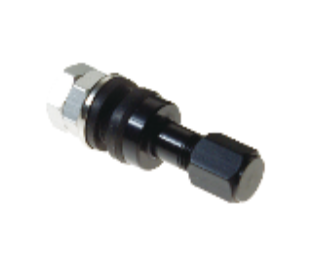

Colors are available in Glass Black(6XZ) and Eternal Blue Pearl (2XZ). Air valve and center cap is included.
Variations
Glass Black (6XZ)
Eternal Blue Pearl (2XZ)
Size Chart
| SIZE | INSET | Hub | HOLE | P.C.D. | HUB | DRILL | COLOR | CALIPER | DISK | LOAD | CODE |
| Clearance | BORE | (φ) | CLEARANCE | PROTRUSION | (lbs) | ||||||
| (mm) | (φ) | (mm) | |||||||||
| 18×7.5J | 45 | -40 | 5 | 100 | 65 | 29-15 | 6XZ | PRIUS (50, 60 series) | 4 | 1,543 | 584887545966XZ |
| 18×7.5J | 45 | -40 | 5 | 100 | 65 | 29-15 | 2XZ | PRIUS (50, 60 series) | 4 | 1,543 | 584887545962XZ |
| 18×7.5J | 45 | -40 | 5 | 112 | 66.6 | 29-15 | 6XZ | AUDI A3(8V),A4(8K),BMW 118i(F40),MINI COOPER S(F56)VW GOLF ⅤⅥⅦⅧ(except R and GTI) | 4 | 1,543 | 584887545206XZ |
| 18×7.5J | 45 | -40 | 5 | 112 | 66.6 | 29-15 | 2XZ | AUDI A3(8V),A4(8K),BMW 118i(F40),MINI COOPER S(F56)VW GOLF ⅤⅥⅦⅧ(except R and GTI) | 4 | 1,543 | 584887545202XZ |
| 18×7.5J | 48 | -37 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ⊿〓 | 4 | 1,543 | 584887548956XZ |
| 18×7.5J | 48 | -37 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ⊿〓 | 4 | 1,543 | 584887548952XZ |
| 18×7.5J | 38 | -47 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ▽θ■⊿＃▲〓 | 4 | 1,543 | 584887538956XZ |
| 18×7.5J | 38 | -47 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ▽θ■⊿＃▲〓 | 4 | 1,543 | 584887538952XZ |
| 18x8J | 45 | -46 | 5 | 100 | 65 | 29-15 | 6XZ | ▽§ | 4 | 1,543 | 584888045966XZ |
| 18x8J | 45 | -46 | 5 | 100 | 65 | 29-15 | 2XZ | ▽§ | 4 | 1,543 | 584888045962XZ |
| 18x8J | 45 | -46 | 5 | 112 | 66.6 | 29-15 | 6XZ | AUDI A3(8V),JCW CROSS OVER(F60),VW GOLFⅦⅧ | 4 | 1,543 | 584888045206XZ |
| 18x8J | 45 | -46 | 5 | 112 | 66.6 | 29-15 | 2XZ | AUDI A3(8V),JCW CROSS OVER(F60),VW GOLFⅦⅧ | 4 | 1,543 | 584888045202XZ |
| 18x8J | 38 | -53 | 5 | 112 | 66.6 | 29-15 | 6XZ | AUDI A3(8V),VW GOLF ⅦⅧ | 4 | 1,543 | 584888038206XZ |
| 18x8J | 38 | -53 | 5 | 112 | 66.6 | 29-15 | 2XZ | AUDI A3(8V),VW GOLF ⅦⅧ | 4 | 1,543 | 584888038202XZ |
| 18x8J | 38 | -53 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ▽θ■⊿＃△★〓 | 4 | 1,543 | 584888038956XZ |
| 18x8J | 38 | -53 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ▽θ■⊿＃△★〓 | 4 | 1,543 | 584888038952XZ |
| 18×8.5J | 45 | -53 | 5 | 100 | 65 | 29-15 | 6XZ | ▽§ | 4 | 1,543 | 584888545966XZ |
| 18×8.5J | 45 | -53 | 5 | 100 | 65 | 29-15 | 2XZ | ▽§ | 4 | 1,543 | 584888545962XZ |
| 18×8.5J | 50 | -48 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ▽θη■⊿＃▲〓 | 4 | 1,543 | 584888550956XZ |
| 18×8.5J | 50 | -48 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ▽θη■⊿＃▲〓 | 4 | 1,543 | 584888550952XZ |
| 18×8.5J | 45 | -53 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ▽θη■⊿＃△★〓 | 4 | 1,543 | 584888545956XZ |
| 18×8.5J | 45 | -53 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ▽θη■⊿＃△★〓 | 4 | 1,543 | 584888545952XZ |
| 18×8.5J | 38 | -60 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ▽θη■⊿＃△☆〓 | 4 | 1,543 | 584888538956XZ |
| 18×8.5J | 38 | -60 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ▽θη■⊿＃△☆〓 | 4 | 1,543 | 584888538952XZ |
| 18x9J | 45 | -59 | 5 | 100 | 65 | 29-15 | 6XZ | ▽§ | 4 | 1,543 | 584889045966XZ |
| 18x9J | 45 | -59 | 5 | 100 | 65 | 29-15 | 2XZ | ▽§ | 4 | 1,543 | 584889045962XZ |
| 18x9J | 38 | -66 | 5 | 100 | 65 | 29-15 | 6XZ | ▽§ | 4 | 1,543 | 584889038966XZ |
| 18x9J | 38 | -66 | 5 | 100 | 65 | 29-15 | 2XZ | ▽§ | 4 | 1,543 | 584889038962XZ |
| 18x9J | 45 | -59 | 5 | 112 | 66.6 | 29-15 | 6XZ | BMW M240(G42) | 4 | 1,543 | 584889045206XZ |
| 18x9J | 45 | -59 | 5 | 112 | 66.6 | 29-15 | 2XZ | BMW M240(G42) | 4 | 1,543 | 584889045202XZ |
| 18x9J | 38 | -66 | 5 | 112 | 66.6 | 29-15 | 6XZ | AUDI A4(8K),BMW M240(G42),BENZ E200(W213),AMG A45S(W177) | 4 | 1,543 | 584889038206XZ |
| 18x9J | 38 | -66 | 5 | 112 | 66.6 | 29-15 | 2XZ | AUDI A4(8K),BMW M240(G42),BENZ E200(W213),AMG A45S(W177) | 4 | 1,543 | 584889038202XZ |
| 18x9J | 45 | -59 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ▽θη■⊿＃△☆〓 | 4 | 1,543 | 584889045956XZ |
| 18x9J | 45 | -59 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ▽θη■⊿＃△☆〓 | 4 | 1,543 | 584889045952XZ |
| 18x9J | 38 | -66 | 5 | 114.3 | 73.1 | 29-15 | 6XZ | ▽θη■⊿＃△☆〓 | 4 | 1,543 | 584889038956XZ |
| 18x9J | 38 | -66 | 5 | 114.3 | 73.1 | 29-15 | 2XZ | ▽θη■⊿＃△☆〓 | 4 | 1,543 | 584889038952XZ |
Caution
[ CALIPER CLEARANCE ]
▼： IMPREZA (GDB 4POT)
▽： IMPREZA (GDB & GRB 4POT)
Θ： WRX STI (4POT)
η： WRX STI (6POT)
■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿： IS-F
◎： RC-F
＃： SILVIA (S15)
△： SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲： SKYLINE (R34 GT-R)
□： SKYLINE (CKV36, HV37, RV37/400R)
α： SKYLINE (CKV36, HV37), FUGA(Y51)
β： SKYLINE (HV37)
γ： SKYLINE (CPV35)
○： FAIRLADY Z (Z33, Z34, RZ34)
●： FAIRLADY Z (Z34)
Ω： FAIRLADY Z (Z33)
☆： LANCER EVO.(VII～IX, X)
★： LANCER EVO.X
∑： LANCER EVO.(VII～IX)
◆： GT-R (R35/φ380 rotor)
◇： GT-R (R35/φ380, φ390 rotor)
〓： GR YARIS (RZ)
Ψ： ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
Features
Delta-section spokes that achieve both rigidity and sharpness
The 57TR features “delta-section spokes,” designed with a triangular cross-section. This unique structure, which varies the surface geometry, not only enhances visual sharpness and depth but also contributes to increased spoke rigidity. Despite their slender form, the spokes convey a strong and powerful presence, creating the sporty and tough impression that defines the 57TR.
The accent of the ‘gramLIGHTS’ logo
The “gram LIGHTS” logo engraved on the inner rim is a mark of pride and proof of quality. The subtle engraving and tonal contrast create a sense of depth, further accentuating the wheel’s sculpted beauty. While serving as a visual accent, this detail also embodies the sporty yet refined character that defines the gramLIGHTS brand

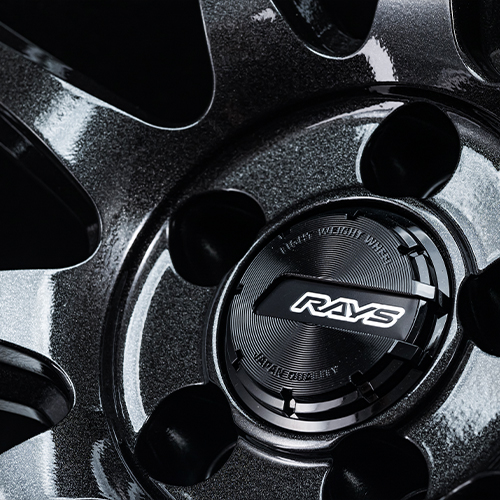

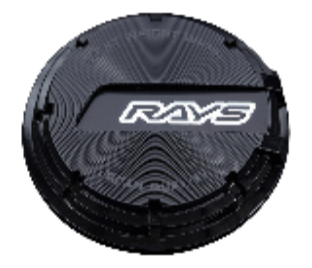

Included center cap
While maintaining the lightness and serviceability required of competition wheels, this cap pursues a level of refinement that also stands out on the street. By visually integrating the machine and the wheel, it subtly asserts the presence of RAYS in every drive.
