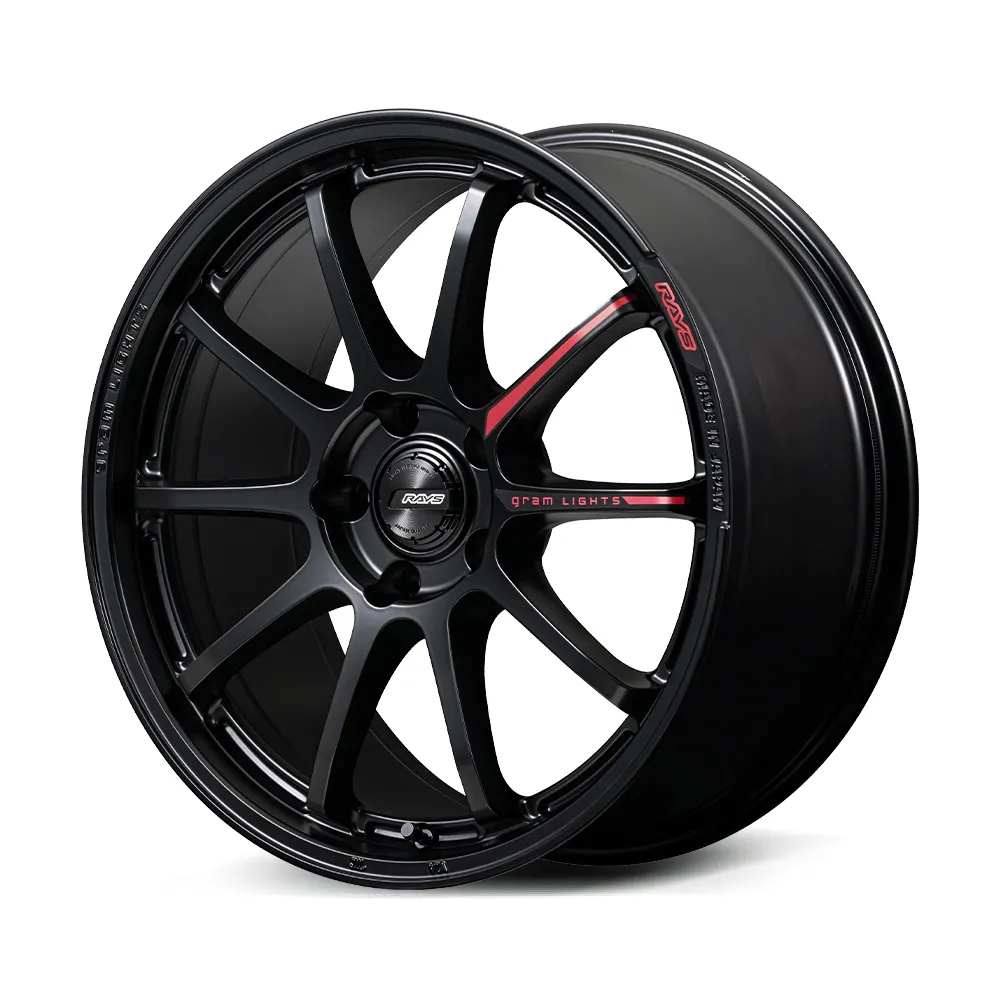

57NR LIMITED II
Do nothing unnecessary. Add only what is needed.
The 57NR was a wheel that was nearly complete at the design stage.
Rather than emphasizing lightness, rigidity, or strength individually, the goal was to achieve all three at once. The result—born from refining how stress flows through the 10 spokes and eliminating every unnecessary element—is the 57NR.
That is why the form remains unchanged in the 57NR LIMITED 2. Instead of adding superficial decoration to an already highly refined tool, we chose to keep the base intact and introduce only “meaningful differences.”
The semi-gloss black finish is selected to avoid exaggerating details. Excessive gloss blurs the lines. By controlling reflections, the spoke cross-sections and the three-dimensional form of the C-FORM are presented exactly as intended.

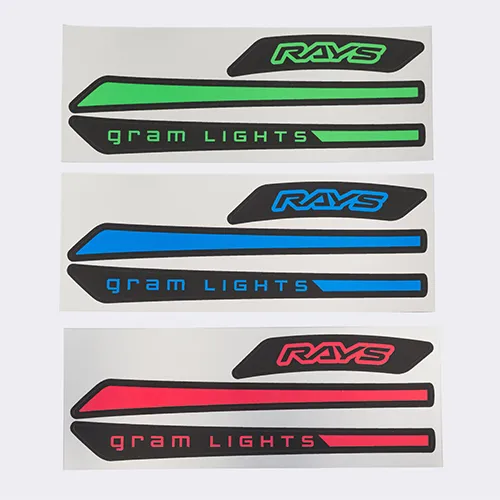

The included metallic-style stickers are not mere decoration. For a rotating component like a wheel, visibility is a function. The metallic texture reflects light evenly, allowing information to be conveyed clearly even in motion.
The colors—blue, green, and red—symbolize moments of victory and the impulse of driving.
The 57NR LIMITED 2 is not a model that boasts exclusivity. It is a refinement intended to allow the 57NR to be used longer and across a wider range of scenarios. Nothing unnecessary is added—only what is essential is carefully refined. That is the RAYS approach to manufacturing.
Variations
Semigloss Black (SB) w/ Red Sticker

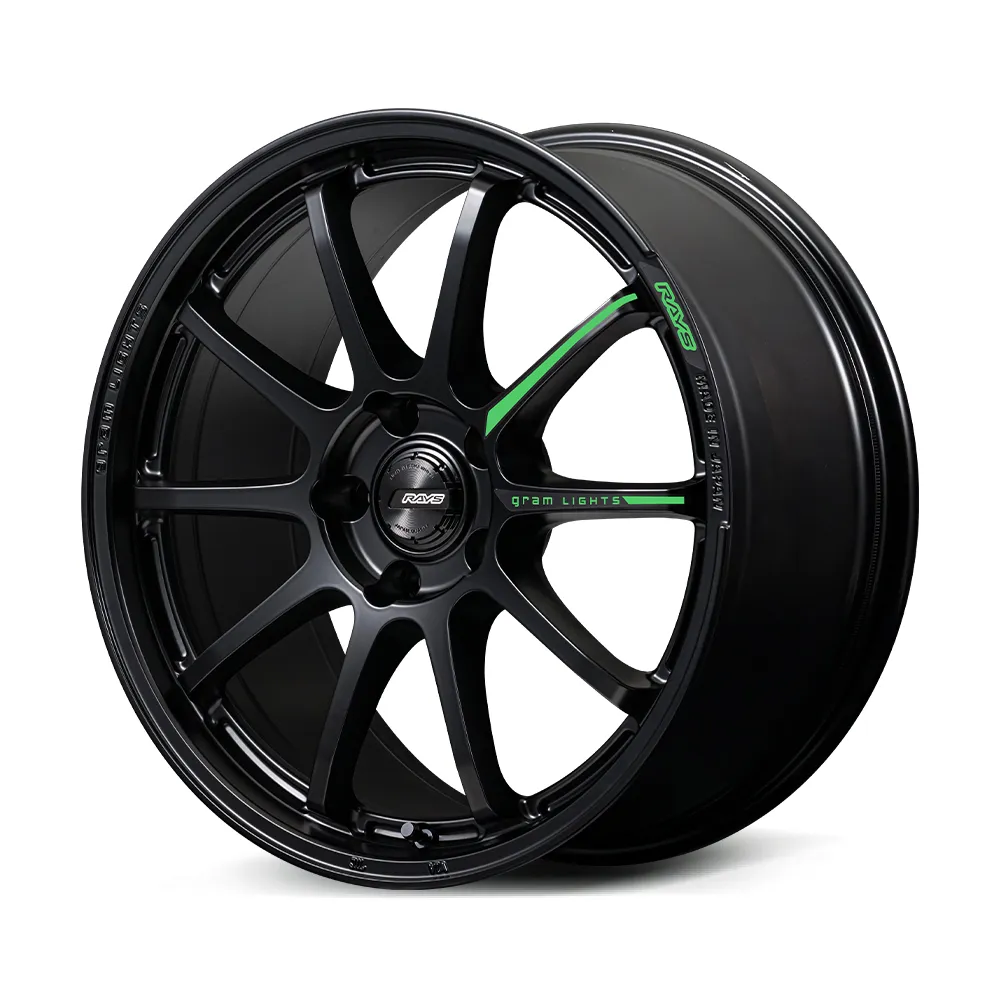

Semigloss Black (SB) w/ Green Sticker
Semigloss Black (SB) w/ Blue Sticker

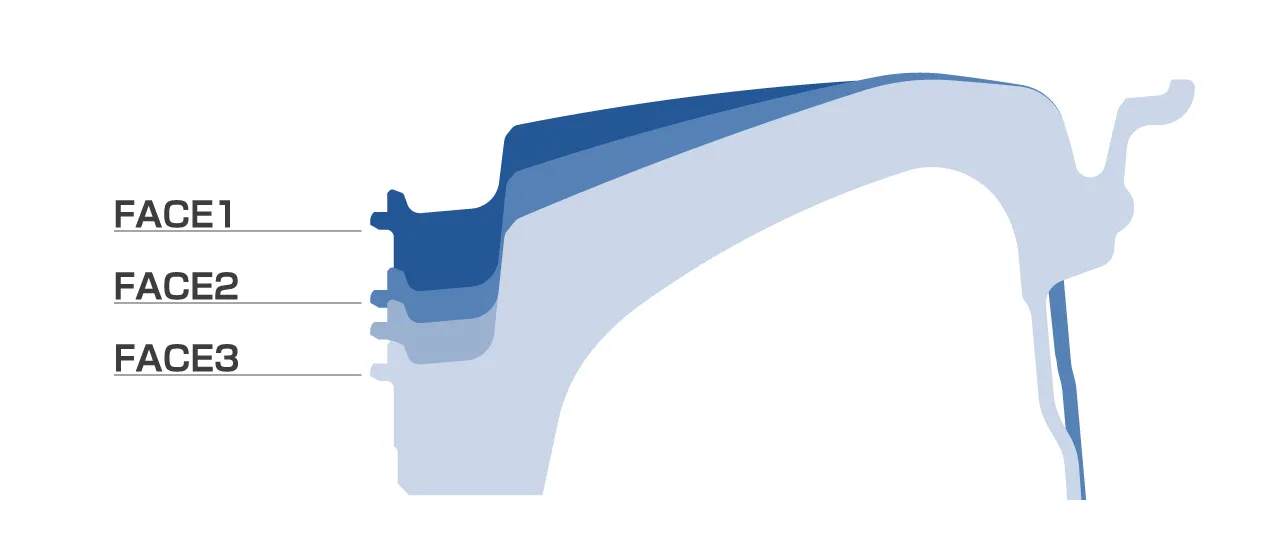

Size Chart
| SIZE | FACE | INSET | Hub | HOLE | P.C.D. | HUB | DRILL | COLOR | CALIPER | DISK | LOAD | LOAD | CODE |
| Clearance | BORE | (φ) | CLEARANCE | PROTRUSION | (kg) | (lbs) | |||||||
| (mm) | (φ) | (mm) | |||||||||||
| 17x7J | F1 | 47 | -35 | 4 | 100 | 65 | 29-15 | SB | 0.4 | 530 | 1,168 | 58627704792SB | |
| 17x7J | F1 | 47 | -35 | 5 | 114.3 | 73.1 | 29-15 | SB | 0.4 | 530 | 1,168 | 58627704795SB | |
| 17x7J | F1 | 38 | -44 | 5 | 114.3 | 73.1 | 29-15 | SB | 0.4 | 530 | 1,168 | 58627703895SB | |
| 18×7.5J | F1 | 45 | -36 | 5 | 100 | 65 | 29-15 | SB | 0.4 | 690 | 1,521 | 58628754596SB | |
| 18×7.5J | F1 | 42 | -39 | 5 | 112 | 66.6 | 29-15 | SB | BMW X1(U11/F48),X2(F39),MINI F series ※except JCW/GP,AUDI A3(8V)*,A4(8K),VW GOLF(Ⅴ*/Ⅵ*/Ⅶ*/Ⅷ)※except R32/R | 0.4 | 690 | 1,521 | 58628754220SB |
| 18×7.5J | F1 | 45 | -36 | 5 | 114.3 | 73.1 | 29-15 | SB | 0.4 | 690 | 1,521 | 58628754595SB | |
| 18×7.5J | F1 | 38 | -43 | 5 | 114.3 | 73.1 | 29-15 | SB | ⊿〓η | 0.4 | 690 | 1,521 | 58628753895SB |
| 18×8.5J | F1 | 45 | -49 | 5 | 100 | 65 | 29-15 | SB | ▼§ | 700 | 1,543 | 58628854596SB | |
| 18×8.5J | F2 | 38 | -35 | 5 | 100 | 65 | 29-15 | SB | ▼§ | 700 | 1,543 | 58628853896SB | |
| 18×8.5J | F1 | 45 | -49 | 5 | 112 | 66.6 | 29-15 | SB | AUDI A3(8V)*,A4(8K),BENZ E-Class(W213),AMG A45S(W177),MINI F series JCW,VW GOLF(Ⅴ*/Ⅵ*/Ⅶ*/Ⅷ*)※ except R32/R | 700 | 1,543 | 58628854520SB | |
| 18×8.5J | F2 | 38 | -35 | 5 | 112 | 66.6 | 29-15 | SB | AUDI TT(8J)*,RS3(GY)Rr.* E-Class(W213)Fr.,BMW 5er(G30) Fr.,MINI F series ※ includes JCW | 700 | 1,543 | 58628853820SB | |
| 18×8.5J | F2 | 22 | -38 | 5 | 112 | 66.6 | 29-15 | SB | AUDI RS3(GY)Fr.,BMW Z4(G29)Fr.*,3er(G20)Fr.TOYOTA SUPRA(A90)Fr* | 700 | 1,543 | 58628852220SB | |
| 18×8.5J | F1 | 45 | -49 | 5 | 114.3 | 73.1 | 29-15 | SB | ⊿■〓▲＃ηθ▽ | 700 | 1,543 | 58628854595SB | |
| 18×8.5J | F2 | 38 | -35 | 5 | 114.3 | 73.1 | 29-15 | SB | ⊿■〓▲＃ηθ▽ | 700 | 1,543 | 58628853895SB | |
| 18×8.5J | F1 | 45 | -49 | 5 | 120 | 72.6 | 29-15 | SB | TOYOTA ALPHARD(40),HONDA CIVIC TYPE R(FK2/FK8/FL5),BMW 3er.(F30) | 700 | 1,543 | 58628854521SB | |
| 18×8.5J | F2 | 38 | -35 | 5 | 120 | 72.6 | 29-15 | SB | HONDA CIVIC TYPE R(FK2*/FK8/FL5*),BMW 3er.(F30) | 700 | 1,543 | 58628853821SB | |
| 18×9.5J | F3 | 45 | -32 | 5 | 100 | 65 | 29-15 | SB | 700 | 1,543 | 58628954596SB | ||
| 18×9.5J | F3 | 38 | -39 | 5 | 100 | 65 | 29-15 | SB | ▼§ | 700 | 1,543 | 58628953896SB | |
| 18×9.5J | F3 | 42 | -35 | 5 | 112 | 66.6 | 29-15 | SB | BENZ C-CLASS(W205)Rr**,BENZ S-CLASS(W213)Rr**, | 700 | 1,543 | 58628954220SB | |
| 18×9.5J | F3 | 45 | -32 | 5 | 114.3 | 73.1 | 29-15 | SB | ⊿〓η | 700 | 1,543 | 58628954595SB | |
| 18×9.5J | F3 | 38 | -39 | 5 | 114.3 | 73.1 | 29-15 | SB | ▽θη■⊿□αβ●〓 | 700 | 1,543 | 58628953895SB | |
| 18×9.5J | F3 | 22 | -44 | 5 | 114.3 | 73.1 | 29-15 | SB | ▽θη■⊿＃△α○☆〓 | 700 | 1,543 | 58628952295SB | |
| 18×9.5J | F3 | 12 | -54 | 5 | 114.3 | 73.1 | 29-15 | SB | ▽θη■⊿＃△α○☆◆〓 | 700 | 1,543 | 58628951295SB | |
| 18×9.5J | F3 | 45 | -32 | 5 | 120 | 72.6 | 29-15 | SB | HONDA CIVIC TYPE R(FL5/FK8/FK2) | 700 | 1,543 | 58628954521SB |
Caution
※ * ：Tuner size. Sample fitments are for reference only.
・Hub clearance is the measurement to the center cap attachment. Measurements will differ depending on the center cap used.
[ CALIPER CLEARANCE ]
▼： IMPREZA (GDB 4POT)
▽： IMPREZA (GDB & GRB 4POT)
Θ： WRX STI (4POT)
η： WRX STI (6POT)
§： GR86/BRZ(ZN8/ZC8)
■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿： IS-F
◎： RC-F
＃： SILVIA (S15)
△： SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲： SKYLINE (R34 GT-R)
□： SKYLINE (CKV36, HV37, RV37/400R)
α： SKYLINE (CKV36, HV37), FUGA(Y51)
β： SKYLINE (HV37)
γ： SKYLINE (CPV35)
○： FAIRLADY Z (Z33, Z34, RZ34 ※except NISMO)
●： FAIRLADY Z (Z34, RZ34 ※except NISMO)
Ω： FAIRLADY Z (Z33)
☆： LANCER EVO.(VII～IX, X)
★： LANCER EVO.X
∑： LANCER EVO.(VII～IX)
◆： GT-R (R35/φ380 rotor)
◇： GT-R (R35/φ380, φ390 rotor)
〓： GR YARIS (RZ)
Ψ： ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
Features
Double Title Commemorative Color
The stickers are available in three colors. Blue is inspired by the color of the championship-winning car that secured the title in D1GP, while Green draws its motif from the championship-winning machine that stood at the top of FDJ (Formula Drift Japan). Together, they subtly reflect the memory of a double title achieved across two different stages. Red evokes the impulse to drive and the exhilaration of sport. Each color quietly carries the intensity of motorsport within the 57NR LIMITED2.

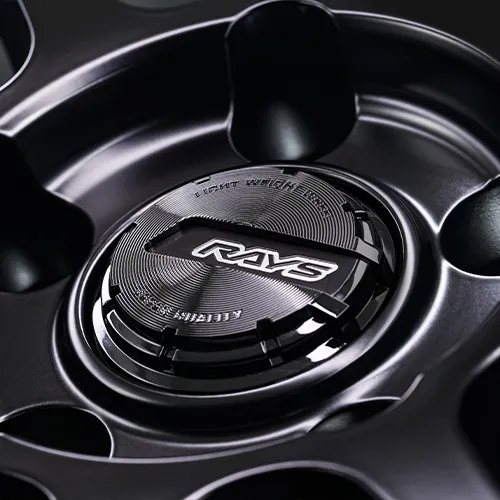

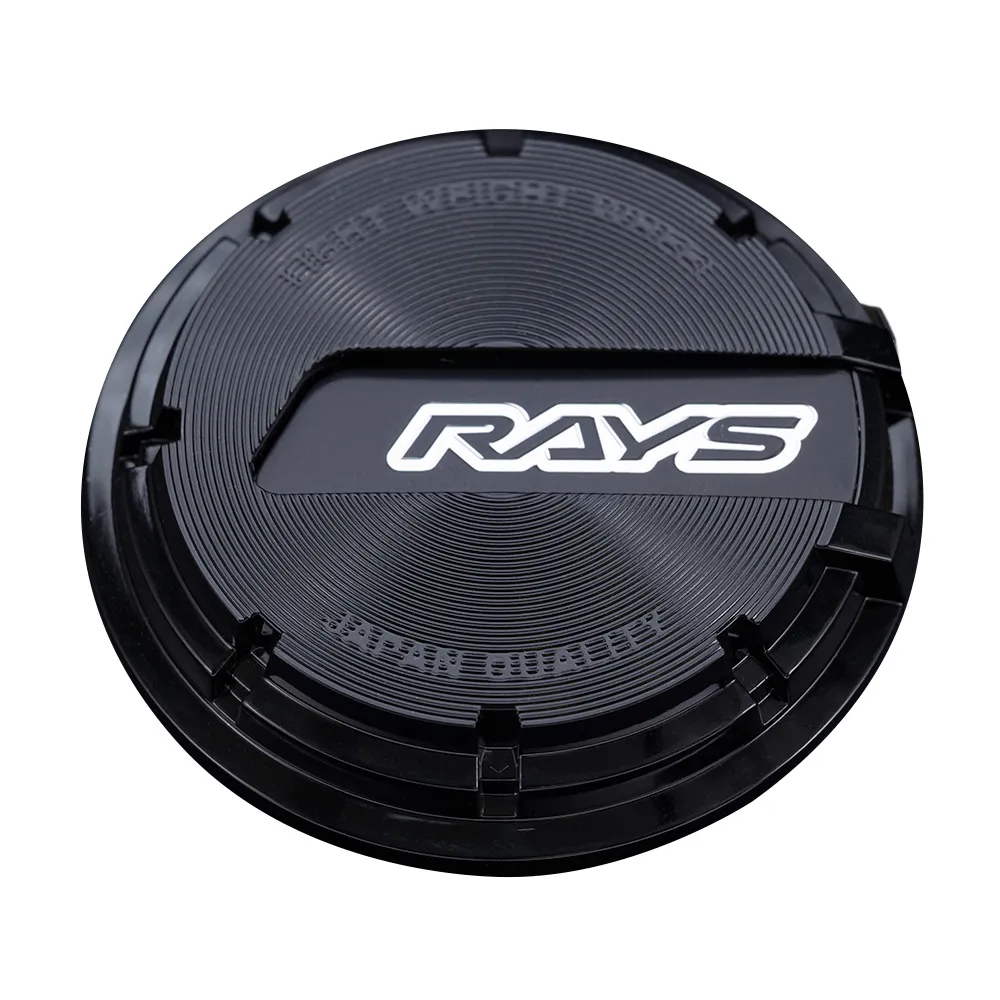

A presence that never compromises its form
Designed with the premise of never interfering with the wheel’s form, this detail exists not to assert itself, but to tighten the overall composition. Its finish is carefully matched to the texture of the Semi-Gloss Black, complemented by a precisely executed logo. Rather than relying on excessive decoration, it establishes a clear presence within a design that has been deliberately stripped down.

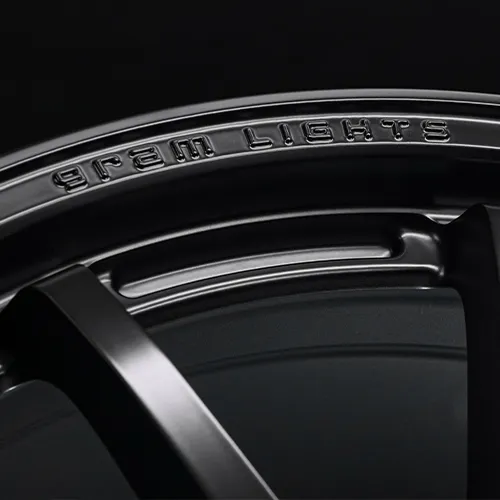

Proof of Authenticity
Along the outer rim, the “gram LIGHTS” lettering is cast directly into the wheel. Formed as an integral part of the rim through the casting process, the logo stands as one of the details that reflects the brand’s authenticity. The calm texture of the Semi-Gloss Black subtly brings out the contours of the lettering, adding a quiet yet confident presence around the wheel.

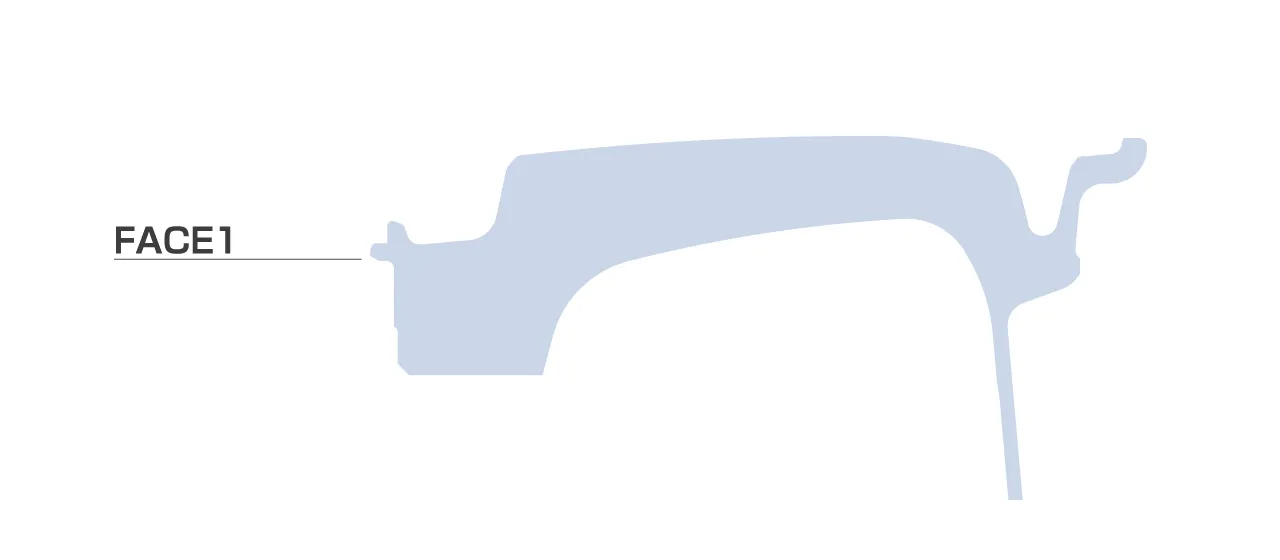

Face Design 17 inch
