57GR-X HD
The second model in the HEAVY DUTY series of high-strength wheels.
A new addition to the HEAVY DUTY series.
True to the name “HD”, which stands for extreme strength and durability under harsh conditions, the wheel meets a load capacity of 2,600 lbs (18-inch 9.0J 6H) and exceeds the JWL-T standard for toughness. Featuring a newly designed 9-spoke layout combined with a reinforced rim shape for enhanced strength. The second model in the HEAVY DUTY series offers the high strength and reliability needed for 4x4s and heavily loaded camper vans.
Variations

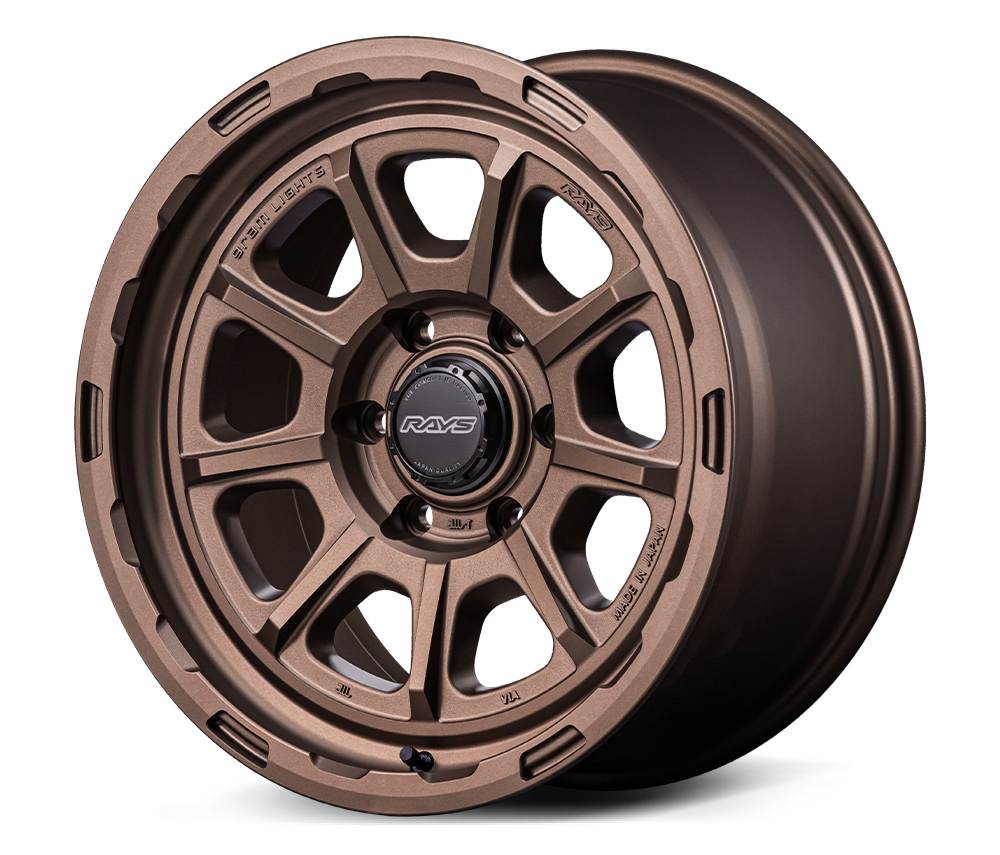

Dark Bronze (Z2) 18x9J

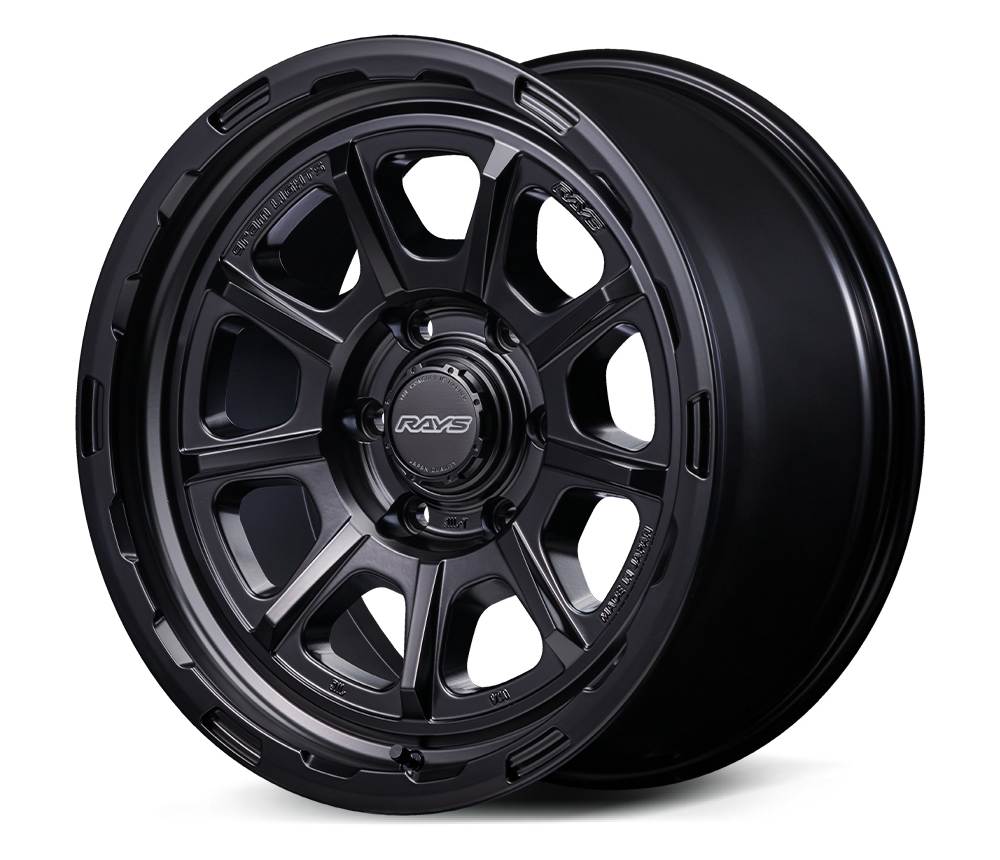

Semigloss Black (SB) 18x9J
Size Chart
| SIZE | INSET | Hub | HOLE | P.C.D. | HUB | DRILL | COLOR | CALIPER | LOAD | CODE |
| Clearance | BORE | (φ) | CLEARANCE | (lbs) | ||||||
| (mm) | (φ) | |||||||||
| 17×8.5J | 0 | -51 | 5 | 127 | 71.6 | 29-15 | SB | Wrangler(JL)* | 1,609 | 58447850089SB |
| 17×8.5J | 0 | -51 | 5 | 127 | 71.6 | 29-15 | Z2 | Wrangler(JL)* | 1,609 | 58447850089Z2 |
| 17×8.5J | -10 | -61 | 5 | 127 | 71.6 | 29-15 | SB | Wrangler(JL)* | 1,609 | 58447857089SB |
| 17×8.5J | -10 | -61 | 5 | 127 | 71.6 | 29-15 | Z2 | Wrangler(JL)* | 1,609 | 58447857089Z2 |
| 17×8.5J | -15 | -66 | 5 | 127 | 71.6 | 29-15 | SB | 1,609 | 58447857589SB | |
| 17×8.5J | -15 | -66 | 5 | 127 | 71.6 | 29-15 | Z2 | 1,609 | 58447857589Z2 | |
| 17×8.5J | -20 | -71 | 5 | 127 | 71.6 | 29-15 | SB | 1,609 | 58447858089SB | |
| 17×8.5J | -20 | -71 | 5 | 127 | 71.6 | 29-15 | Z2 | 1,609 | 58447858089Z2 | |
| 17×8.5J | 0 | -51 | 6 | 139.7 | 106.1 | 29-15 | SB | LAND CRUISER PRADO(TRJ150W, VZAJ120W)*,TACOMA(2022)* | 1,609 | 58447850014SB |
| 17×8.5J | 0 | -51 | 6 | 139.7 | 106.1 | 29-15 | Z2 | LAND CRUISER PRADO(TRJ150W, VZAJ120W)*,TACOMA(2022)* | 2,600 | 58447850014Z2 |
| 17×8.5J | -10 | -61 | 6 | 139.7 | 106.1 | 29-15 | SB | LAND CRUISER PRADO(TRJ150W, VZAJ120W)*,TACOMA(2022)* | 2,600 | 58447857014SB |
| 17×8.5J | -10 | -61 | 6 | 139.7 | 106.1 | 29-15 | Z2 | LAND CRUISER PRADO(TRJ150W, VZAJ120W)*,TACOMA(2022)* | 2,600 | 58447857014Z2 |
| 17×8.5J | -15 | -66 | 6 | 139.7 | 106.1 | 29-15 | SB | 2,600 | 58447857514SB | |
| 17×8.5J | -15 | -66 | 6 | 139.7 | 106.1 | 29-15 | Z2 | 2,600 | 58447857514Z2 | |
| 17×8.5J | -20 | -71 | 6 | 139.7 | 106.1 | 29-15 | SB | 2,600 | 58447858014SB | |
| 17×8.5J | -20 | -71 | 6 | 139.7 | 106.1 | 29-15 | Z2 | 2,600 | 58447858014Z2 | |
| 18x9J | 0 | -71 | 5 | 127 | 71.6 | 29-15 | SB | Wrangler(JL)* | 1,609 | 58448900089SB |
| 18x9J | 0 | -71 | 5 | 127 | 71.6 | 29-15 | Z2 | Wrangler(JL)* | 1,609 | 58448900089Z2 |
| 18x9J | 20 | -51 | 5 | 127 | 71.6 | 29-15 | SB | Wrangler(JL)* | 1,609 | 58448902089SB |
| 18x9J | 20 | -51 | 5 | 127 | 71.6 | 29-15 | Z2 | Wrangler(JL)* | 1,609 | 58448902089Z2 |
| 18x9J | 0 | -71 | 6 | 135 | 106.1 | 29-15 | SB | F-150 RAPTOR(2019)* | 2,600 | 58448900017SB |
| 18x9J | 0 | -71 | 6 | 135 | 106.1 | 29-15 | Z2 | F-150 RAPTOR(2019)* | 2,600 | 58448900017Z2 |
| 18x9J | 20 | -51 | 6 | 135 | 106.1 | 29-15 | SB | F-150 RAPTOR(2019)* | 2,600 | 58448902017SB |
| 18x9J | 20 | -51 | 6 | 135 | 106.1 | 29-15 | Z2 | F-150 RAPTOR(2019)* | 2,600 | 58448902017Z2 |
| 18x9J | 0 | -71 | 6 | 139.7 | 106.1 | 29-15 | SB | FJ CRUISER*,HILUX GR(GUN125)* | 2,600 | 58448900014SB |
| 18x9J | 0 | -71 | 6 | 139.7 | 106.1 | 29-15 | Z2 | FJ CRUISER*,HILUX GR(GUN125)* | 2,600 | 58448900014Z2 |
| 18x9J | 20 | -51 | 6 | 139.7 | 106.1 | 29-15 | SB | FJ CRUISER*,LAND CRUISER PRADO(TRJ150W,VZAJ120W)*,HILUX(GUN125),HILUX SURF(VZN215W)* | 2,600 | 58448902014SB |
| 18x9J | 20 | -51 | 6 | 139.7 | 106.1 | 29-15 | Z2 | FJ CRUISER*,LAND CRUISER PRADO(TRJ150W,VZAJ120W)*,HILUX(GUN125),HILUX SURF(VZN215W)* | 2,600 | 58448902014Z2 |
Features

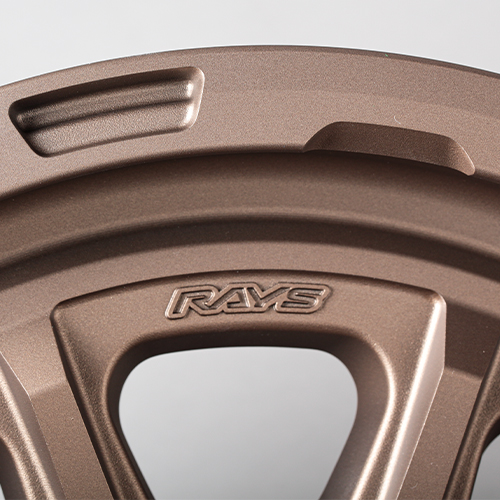

Reinforced rim flange
The rim flange has been reinforced to withstand harsh conditions. While increased thickness enhances strength, weight gain is minimized through carefully designed cutouts. This design not only delivers a strong visual impact but also contributes to overall performance.

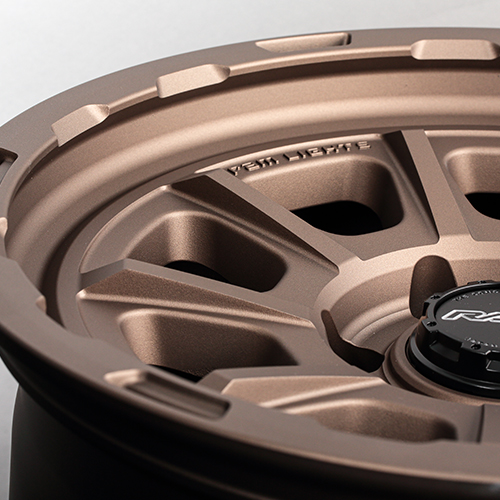

Ribbed design for rigidity
The 57GR-X HD uses ribbed spokes to add visual depth and improve rigidity. Each spoke narrows toward the center and links naturally to the raised hub, creating a bold, dimensional look. This distinctive spoke design fuses strength with aesthetics—a defining feature of the 57GR-X HD.

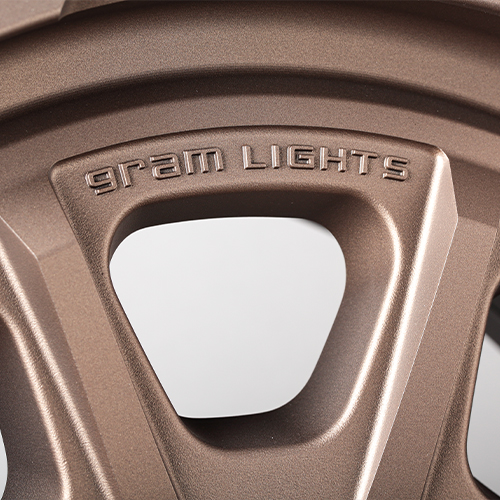

Logo between spokes
The “gram LIGHTS” cast logo is positioned on the bridge section between the spokes. It blends naturally into the wheel design while quietly expressing the presence of the brand.
